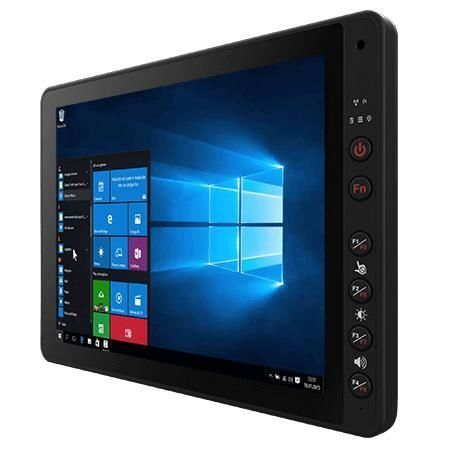

12.1" vehicle-mount computer FM12E-V

Intel® Atom x6413EMIL-STD-810HIP 65

Overview
The FM12E-V is a 12.1-inch vehicle-mounted computer designed for warehouse logistics, fleet management and forklift operations. Built for industrial vehicle use, it combines Intel Elkhart Lake processors, a PCAP multi-touch display, IP65 ingress protection and MIL-STD-810H shock & vibration compliance for reliable operation in harsh environments.

Key Features

• Intel® Elkhart Lake processor options (x6413E default)
• 12.1-inch 1024×768 PCAP multi-touch display (400 nits default, 800 nits optional)
• IP65 front protection and MIL-STD-810H certified enclosure
• Wide power input 10–60V DC with ignition control for vehicle integration
• Wide operating temperature range: -30°C to 60°C
• VESA mounting support and fanless design

Certifications

• IP65
• MIL-STD-810H (shock & vibration)
• CE, FCC, IC (ICES-003)
• UL60950-1, EN60950-1, PTCRB

Product Details
Vibration and shock-proof design
Rugged enclosure certified to MIL-STD-810H with ESD protection and IK07 impact rating to withstand vehicleborne shocks and vibrations.

PCAP Touch Screen
Projected capacitive multi-touch supporting finger, glove and stylus input; high-brightness option available for outdoor use.

High-performance CPU
Default Intel Atom x6413E (1.5 GHz, up to 3.0 GHz) with optional higher-performance Elkhart Lake variants for improved compute and graphics capabilities in edge workloads.

Windows IoT support
Ships with Windows 10 IoT Enterprise LTSC (64-bit) by default; Windows 11 IoT Enterprise LTSC (64-bit) available as an option for enterprise manageability and remote device control.

Reliable extreme-temperature operation
Designed for stable operation in cold chain and refrigerated logistics as well as hot environments thanks to wide temperature rating and fanless thermal design.

Specifications
Display

• Size: 12.1 inches
• Type: Projected Capacitive Multi Touch (PCAP)
• Resolution: 1024 x 768
• Brightness: 400 nits (default); 800 nits (optional)
• Contrast Ratio: 1000:1
• View Angles: 89/89/89/89
• Touch Modes: Finger, Stylus, Glove

System Specification

• Processor: Intel Atom x6413E 1.5 GHz (up to 3.0 GHz) default; optional x6425E, x7433RE, x7835RE
• Memory: 4 GB default; 8 GB / 16 GB optional
• Storage: 128 GB default; 256 GB / 512 GB optional
• Security: TPM 2.0, SOTI MobiControl compliance
• OS: Windows 10 IoT Enterprise LTSC (64-bit) default; Windows 11 IoT Enterprise LTSC optional
• Wireless: WLAN, Bluetooth; WWAN 4G/LTE optional; GNSS GPS/GLONASS optional
• Sensors: G-sensor, light sensor, temperature sensor

Camera

• Front camera: 2 MP

Environment

• Operating Humidity: 5%–90% RH, non-condensing
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -30°C to 60°C
• Shock: MIL-STD-810H Method 516.8 Procedure I
• Vibration: MIL-STD-810H Method 514.8 Procedure I
• IP Rating: IP65
• Impact: EN62262 IK07
• ESD: EN 61000-4-2, ±8kV contact & ±12kV air

Certification (detailed)

• CE, FCC, IC (ICES-003)
• UL60950-1, EN60950-1, PTCRB

Control & Buttons

• 1 x Power Button
• 5 x Function Buttons (programmable via Winset)

I/O Ports

• USB: 1 x USB Type-C; 1 x USB 2.0 Type-A
• Serial: 2 x RS232/422/485 (default RS232)
• LAN: 1 x Gigabit LAN (default); optional PSE (IEEE 802.3at 30W)
• Audio: 1 x Audio (Mic in & Line out) either one with DIDO optional
• SD Card: 1 x Micro SD card slot
• SIM: 1 x Dual-Nano SIM card slot
• Indicator: 4 x LED indicators (WLAN, UPS battery, HDD, Heater)
• DIDO: 1 x DIDO (2 DI, 2 DO) optional
• CANBus: 1 x CANBus optional

Mechanical

• Dimension: 306.6 x 225 x 56.6 mm
• Weight: ~2.4 kg
• Mounting: VESA 75 x 75 mm
• Cooling System: Fanless design

Security Function

• SOTI MobiControl compliance for remote device management

Accessory
Standard accessories

• 1.8 m power cable with fuse kit (PWC180 / PCC-FM / FK-FMD references)
• 84W adapter with power cable; Quick Start Guide

Optional accessories (examples)

• Magnetic multi-band combo antenna (VM10S), GPS & LTE MIMO antenna (VM9C)
• RS232 & audio cables, GPS antenna, WWAN antenna
• Stylus kit, RS232 & CANBus cables, IP65 LAN/USB cables, mounting kits

Power

• Battery: Optional 400 mAh UPS (approx. 20 minutes backup)
• Power Rating: 10–60 V DC with ignition control
• Consumption: Typical 45 W

Mounting Examples
Mounting 1 – No Drill Solution (example)

• RAM clamp mounts on forklift: RAM-D-247U-4; RAM arm RAM-D-201U; RAM ball RAM-D-2461U

Mounting 2 – Drill Solution (example)

• RAM round base RAM-D-202U; RAM arm RAM-D-201U; RAM ball RAM-D-2461U

Notes

• Images and tables are illustrative; available installation methods depend on model and options.
• Confirm required I/O, mounting and power configuration before ordering.
