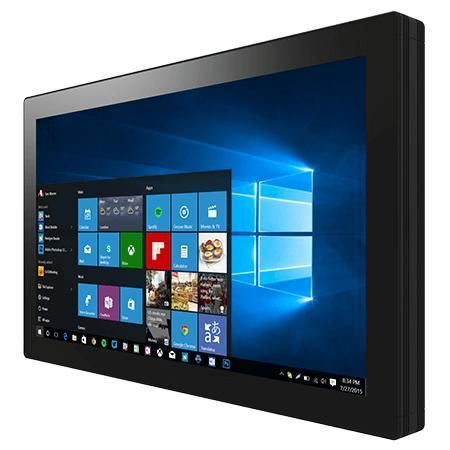

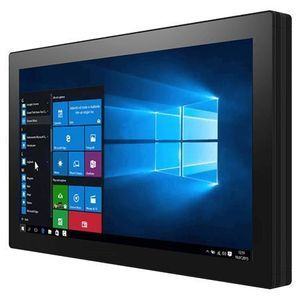

Multitouch screen panel PC W27IAD7T-PCA1

PCAP capacitive touch screen27"1920 x 1080

Overview
The W27IAD7T-PCA1 is a 27.0-inch standalone HMI Panel PC for machine control, factory automation and operator interfaces. It integrates a 1920 x 1080 projected capacitive multi-touch display, support for 12th Gen Intel® Core™ Alder Lake (LGA 1700) processors, a metal housing with front IP65 protection and multiple industrial I/O options for system integration.

Key features

• 12th Gen Intel® Core™ Alder Lake S (LGA 1700): i9 / i7 / i5 / i3 options
• 27.0-inch 1920 x 1080 projected capacitive multi-touch (PCAP)
• Multi-display support: DP1.4a / HDMI 2.0b / LVDS / eDP
• Multiple I/O: 1x serial (RS232/422/485), 4x USB 3.2 Gen2 Type-A, 2x 2.5GbE LAN
• True flat edge-to-edge front; front panel IP65
• Aluminum/metal enclosure; 12V DC input

Certifications
CE, FCC

System specification highlights

• Default CPU: Intel® Core™ i5-12500TE (up to 4.3GHz); optional: i9-12900TE, i7-12700TE, i3-12100TE
• Chipset: Intel® R680E
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB / 512GB / 1TB / 2TB / 4TB
• Ethernet: 2 x Intel® 2.5 Gbps controllers
• Security: TPM 2.0; OS options: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (Linux: Wake on Touch not supported)
• WLAN/Bluetooth: optional via M.2 2230 E-Key slot

Display

• Size: 27.0-inch
• Touch / Glass: Projected Capacitive Multi Touch (PCAP)
• Resolution: 1920 x 1080
• Brightness: 300 nits; Contrast: 3000:1
• View angles: 89/89/89/89; Active area: 597.6 x 336.15 mm

Mechanical

• Dimensions: 675.4 x 413.4 x 64.5 mm
• Weight: 10.2 kg
• Mounting: VESA mount
• Enclosure: Metal / aluminum housing
• Cooling: internal fan design where applicable (front fanless)

Environment

• Operating humidity: 10%–90% RH, non-condensing
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -10 °C to 60 °C
• Front IP rating: IP65

I/O and expansion

• USB: 4 x USB 3.2 Gen2 Type-A (10 Gbps)
• Serial: 1 x RS232/422/485 (default RS232)
• LAN: 2 x 2.5 Giga LAN RJ45
• Video: 1 x DP1.4a (DP++ default); optional 1 x HDMI 2.0b
• Audio: Mic in, Line out
• Expansion: 1 x M.2 2230 E-Key slot for Wi‑Fi module
• Power input: 1 x 12V DC (DIN4 pin); adapter spec: 12V 220W

Control & accessories

• Buttons: 1 x Power, 1 x Reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws (adapter 12V 220W)

Applications
Industrial automation, machine control, operator HMI, smart factory visualization, interactive kiosks and other industrial/commercial display deployments requiring a dust‑ and water‑protected touch interface and extended lifecycle support.

Technical specifications

• Model: W27IAD7T-PCA1
• Display: 27.0" 1920x1080 PCAP, 300 nits
• Processors: Intel® Alder Lake i3 / i5 / i7 / i9 (LGA 1700)
• Memory: 2 x SO-DIMM, up to 64GB
• Storage: 128GB SSD default (options to 4TB)
• LAN: 2 x 2.5 GbE; USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485; Video: DP1.4a (default), HDMI 2.0b (optional)
• Expansion: M.2 2230 E-Key; Power: 12V DC input
• Front protection: IP65; Dimensions: 675.4 x 413.4 x 64.5 mm; Weight: 10.2 kg
• Certifications: CE, FCC
