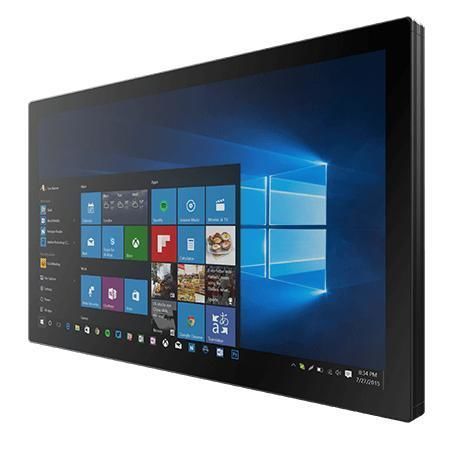

Multitouch screen panel PC W43IT7T-PCA3

PCAP capacitive touch screen43"1920 x 1080

Overview
The Winmate W43IT7T-PCA3 is a 43-inch PCAP standalone HMI Panel PC designed for machine control, factory automation and operator HMI. It integrates an Intel® 11th Gen Core™ i5-1135G7 (Tiger Lake UP3) processor, a true-flat projected capacitive multi-touch display with front IP65 protection, multiple mounting options (Yoke, VESA) and a comprehensive set of I/Os for industrial integration.

Key Features

• Intel® 11th Generation Core™ i5-1135G7 (Tiger Lake UP3) processor
• 43" Projected Capacitive (PCAP) multi-touch chassis HMI
• Front IP65 protection (splash and dust resistant)
• True-flat, edge-to-edge front surface for easy cleaning
• Mounting options: Yoke mount and VESA mount
• Multiple I/Os: 4× USB 3.2 Gen1, RS232/422/485, 2× Gigabit LAN, DP/HDMI options, audio

Certifications

• CE
• FCC

Product details — Highlights from the page

• Display: 43 inches, Resolution: 1920 × 1080
• Panel brightness: 400 nits; Contrast ratio: 3000:1; Viewing angles: 89/89/89/89
• Active area: 940.896 × 529.254 mm
• Front protection: IP65
• Cooling: Fan design

Mounting & mechanical

• Dimensions: 1028.8 × 617 × 62.8 mm
• Weight: 25.0 kg
• Mounting: VESA mount; Yoke mount supported
• Enclosure: Metal housing

Intended use

• Designed for industrial HMI, machine control, factory automation and environments requiring reliable field operation and long lifecycle availability

Technical specifications

• Model: W43IT7T-PCA3
• Display: 43", Projected Capacitive Multi Touch, 1920×1080, 400 nits, 3000:1 contrast
• Processor: Intel® Core™ i5-1135G7 2.4 GHz (up to 4.2 GHz)
• Memory: 2× non-ECC SO-DIMM, up to 64 GB (32 GB per DIMM)
• Storage: 128 GB SSD (default); options: 256 GB / 512 GB / 1 TB / 2 TB
• Ethernet: 2× Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Linux Ubuntu 22.04 (Linux does not support Wake on Touch)
• WLAN/BT: optional (M.2 2230 E-Key)
• USB: 4× USB 3.2 Gen1 Type-A
• Serial: 1× RS232/422/485 (default RS232)
• Video: 1× DP 1.2 (default); 1× HDMI 1.4 (optional)
• Audio: Mic in, Line out, 2× Speaker
• Expansion: 1× M.2 2280/2242 M-Key (NVMe/SATA), 1× M.2 2230 E-Key (Wi‑Fi)
• Indicators: LED for power; LED for storage
• Power input: 1× 24V DC, Din4 pin connector
• Buttons: Power, Reset
• Accessories: 100~240V AC to DC adapter, power cord, VESA screws
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C; Storage temperature: -10°C to 60°C
• IP rating: Front IP65
