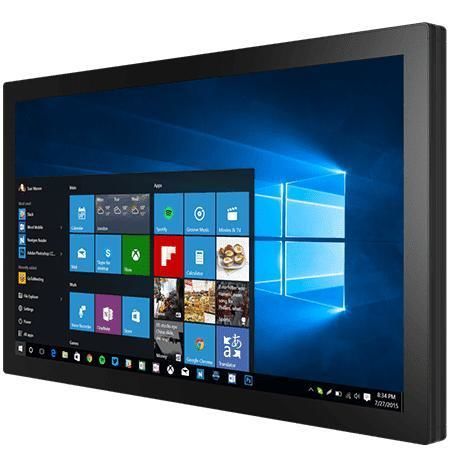

Multitouch screen panel PC W43IF7T-PCA3

PCAP capacitive touch screen43"1920 x 1080

Overview
Winmate W43IF7T-PCA3 is a 43" All-in-One industrial PC powered by Intel® Core™ i3/i5/i7 (Coffee Lake Refresh) processors. Intended for industrial automation, embedded HMI and mission-critical installations, it integrates a Full HD display with projected capacitive multi-touch, front IP65 protection and multiple mounting options for system integration and panel installations.

Key features

• Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh)
• 43" Full HD (1920 x 1080) display
• Projected Capacitive (PCAP) multi-touch screen
• Front IP65 protection against water and dust
• True-flat edge-to-edge front panel for easy cleaning
• Yoke and VESA mounting options
• Multiple I/O: USB 3.0, RS232/422/485 serial, dual Gigabit LAN

Product highlights

• PCAP Multi-Touch: Supports multi-finger gestures for intuitive HMI operations (zoom, rotate, pan).
• Efficient thermal design: Low power consumption and effective heat dissipation for continuous operation.
• Mounting flexibility: Rear and VESA mounting for racks, consoles and panel integration.

Certifications

• CE
• FCC

Technical specifications

• Model: W43IF7T-PCA3
• Brand: Winmate
• Display: 43"; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1920 x 1080; Panel Brightness: 400 nits; Contrast Ratio: 3000:1; View Angles: 89/89/89/89; Active Area: 940.896 × 529.254 mm
• Processor: Intel Core i7-9700TE 1.8GHz (up to 3.8GHz) (Default); Optional: Intel Core i5-9500TE 2.2GHz (up to 3.6GHz); Intel Core i3-9100TE 2.2GHz (up to 3.2GHz)
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB; 2 x SATA III for 2.5" SSD/HDD supporting RAID 0,1 (optional); 1 x M.2 2280/2242 M-Key slot (NVMe or SATA SSD)
• Ethernet: 2 x Intel® Gigabit Ethernet controllers (2 x RJ45 Gigabit LAN)
• Security: TPM 2.0
• Operating System (optional): Windows 10 IoT Enterprise (64-bit); Linux Ubuntu 20.04
• Wireless: WLAN (optional); Bluetooth (optional) via M.2 2230 E-Key slot
• I/O Ports: 4 x USB 3.2 Gen1x1 (Type-A); 1 x RS232/422/485 serial port (default RS232); 2 x Gigabit LAN RJ45; Video: 1 x DisplayPort 1.2 (Default), 1 x HDMI 1.4 (Optional); Audio: 1 x Mic in, 1 x Line out, 2 x Speakers
• Expansion & Indicators: 1 x M.2 2280/2242 M-Key slot; 1 x M.2 2230 E-Key slot; LED indicators: power, storage
• Power & Accessories: Power input 1 x 24V DC (Din4 pin connector); accessories: 100~240V AC to DC adapter, power cord, VESA screws (depending on configuration)
• Mechanical: Dimensions 1028.8 x 617 x 62.8 mm; Weight 25.0 kg; Enclosure: Metal housing; Cooling: Fan design; Mounting: VESA mount
• Environment: Operating humidity 10% to 90% RH (non-condensing); Operating temperature 0°C to 50°C; Storage temperature -10°C to 60°C; Front IP rating: IP65
• Control: 1 x Power button; 1 x Reset button
