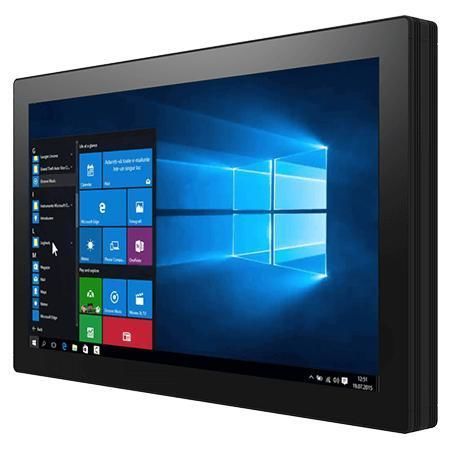

Multitouch screen panel PC W27IT7T-PCA1

PCAP capacitive touch screen27"1920 x 1080

Overview
The W27IT7T-PCA1 is a 27" PCAP standalone HMI Panel PC powered by an Intel® Core™ i5-1135G7 (Tiger Lake UP3). Designed for machine control, factory automation and operator HMI tasks, it features a true-flat edge-to-edge front, front IP65 protection, VESA mounting and a fanless metal housing for reliable industrial operation.

Key features

• Intel® 11th Gen Core™ i5-1135G7 processor
• 27.0" Projected Capacitive (P-Cap) multi-touch display, 1920 x 1080
• Front IP65 waterproof and dustproof protection
• True-flat edge-to-edge glass for easy cleaning
• VESA mount support for wall or arm installation
• Extensive I/O: multiple USB 3.2 Gen2, RS232/422/485 serial, Gigabit + 2.5 Gigabit Ethernet, DP1.4 (default) and optional HDMI 2.0

Highlights

• Industrial-grade display: 300 nits brightness, 3000:1 contrast
• P-Cap touchscreen with 4-point multi-touch
• Fanless design with metal enclosure for low-maintenance operation
• Multiple storage options (128GB SSD default; up to 2TB optional)
• Security support: TPM 2.0

Certifications

• CE
• FCC

Additional product information
Optional operating systems include Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit and Linux Ubuntu 22.04 (note: Wake on Touch limitation). Wireless (WLAN/BT) is available via M.2 2230 E-Key. Unit includes LED indicators for power and storage and a brightness adjustment knob. Accessories: AC-to-DC adapter (12V 120W), power cord and VESA screws.

Technical specifications

• Model: W27IT7T-PCA1
• Display size: 27.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-Cap), 4-point multi-touch
• Resolution: 1920 x 1080
• Panel Brightness: 300 nits
• Contrast Ratio: 3000:1
• Active Area: 597.6 x 336.15 mm
• Processor: Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• Storage: 128GB SSD default; optional 256GB/512GB/1TB/2TB
• Ethernet: 1 x Gigabit RJ45 + 1 x 2.5 Gigabit RJ45 (Intel® controllers)
• USB: 4 x USB 3.2 Gen2 Type-A
• Serial: 1 x RS232/422/485 (default RS232)
• Video: 1 x DisplayPort 1.4 (default); HDMI 2.0 optional
• Audio: Mic in; Line out
• Expansion: 1 x M.2 2230 E-Key (Wi‑Fi module)
• Indicators: LED power, LED storage
• Controls: Power button, Reset button, Brightness adjustment knob
• Power input: 12V DC (Din4 pin); adapter 12V 120W
• Dimensions: 675.4 x 413.4 x 48 mm
• Weight: 10.4 kg
• Mounting: VESA mount
• Enclosure: Metal housing
• Cooling: Fanless design
• Operating temp.: 0°C to 50°C; Storage temp.: -10°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Front IP rating: IP65
• Certifications: CE, FCC
