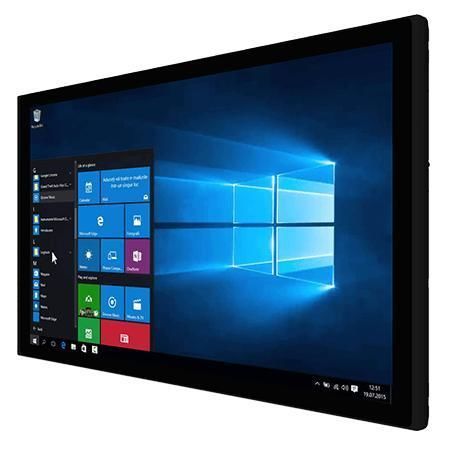

Multi-touch screen panel PC W32IT3S-PTA3

PCAP capacitive touch screen32"1920 x 1080

Overview
The W32IT3S-PTA3 is a 32-inch standalone HMI Panel PC for machine control, factory automation and operator interfaces. It integrates an 11th Gen Intel® Core™ i5-1135G7 processor, a projected capacitive (P-Cap) Full HD multi-touch display, front IP65 protection and a true-flat front surface for easy cleaning and maintenance.

Key Features

• 32" 1920 x 1080 P-Cap multi-touch display, 400 nits brightness
• Intel® Core™ i5-1135G7 (up to 4.2 GHz); optional Core i5-1145G7
• Fan-cooled design with low power profile
• Front panel IP65 protection against dust and splashes
• True-flat edge-to-edge front surface for simplified cleaning
• Flexible I/O: 2 x Gigabit LAN, 1 x COM (RS232/422/485), 2 x USB 3.0, 1 x HDMI (optional)

Applications
Designed for OEM integration, system integrators and industrial end-users requiring field-ready HMI hardware for PLC control, SCADA interfaces, operator stations and process monitoring.

Display

• Size: 32.0 inches
• Type: Projected Capacitive Multi Touch (P-Cap)
• Resolution: 1920 x 1080
• Brightness: 400 nits
• Contrast: 4000:1
• Viewing angles: 89/89/89/89
• Active area: 698.4 x 392.85 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4 GHz (up to 4.2 GHz); optional i5-1145G7
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4 GB default; options: 8/16/32 GB)
• Storage: M.2 2280 NVMe SSD 128 GB default (options 256/512 GB/1 TB/2 TB); optional 1 x SATA III for 2.5" SSD/HDD
• Ethernet: 2 x Intel® Gigabit LAN (RJ45)
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Windows 10 IoT Enterprise / Linux Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional

Environment

• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65

Certifications

• CE
• FCC

Mechanical

• Dimensions: 799 x 478 x 63.7 mm
• Mounting: VESA mount
• Enclosure: Plastic
• Cooling: Fan design

IO Ports

• USB: 2 x USB 3.0
• Serial: 1 x RS232 (default) / 422 / 485
• LAN: 2 x RJ45 10/100/1000 Mbps
• Video: 1 x HDMI (optional)
• Audio: 2 x Speaker

Accessories

• Quick Start Guide (hardcopy)
• AC Adapter 12V / 120 W
• Power cord

Power

• Power input: 12 V DC

Control

• Buttons: 5-key control — Power, Up, Down, Left, Right

Technical Specifications

• Model: W32IT3S-PTA3
• Brand: Winmate
• Display size: 32.0 inches
• Resolution: 1920 x 1080
• Touch: Projected Capacitive Multi Touch
• Processor: Intel Core i5-1135G7 (up to 4.2 GHz)
• Memory: 1 x SO-DIMM DDR4 3200 MHz (4 GB default, up to 32 GB optional)
• Storage: M.2 NVMe SSD 128 GB default; SATA III for 2.5" optional
• Ethernet: 2 x Gigabit LAN (Intel controllers)
• Serial: 1 x RS232/422/485
• USB: 2 x USB 3.0
• Video: 1 x HDMI (optional)
• Audio: 2 x Speaker
• Front protection: IP65
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
