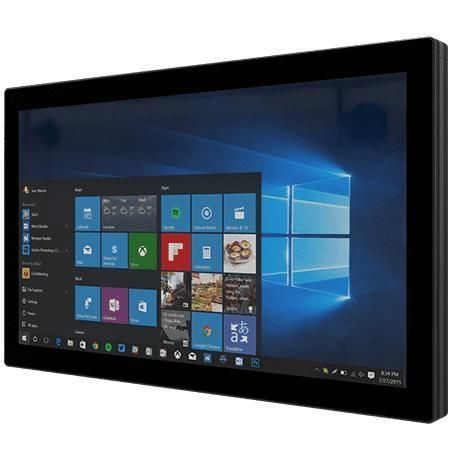

Multitouch screen panel PC W32IAD7T-PCA3
PCAP capacitive touch screen32"1920 x 1080

Multitouch screen panel PC - W32IAD7T-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / 32" / 1920 x 1080
Multitouch screen panel PC - W32IAD7T-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / 32" / 1920 x 1080
Multitouch screen panel PC - W32IAD7T-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / 32" / 1920 x 1080 - image - 2
Multitouch screen panel PC - W32IAD7T-PCA3 - Winmate, Inc. - PCAP capacitive touch screen / 32" / 1920 x 1080 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP capacitive touch screen, multitouch screen
Display size
32"
Resolution
1920 x 1080
Processor
12th Generation IntelĀ® Coreā„¢, IntelĀ® Coreā„¢ i5-12500TE, IntelĀ® Coreā„¢ i7-12700TE, IntelĀ® Coreā„¢ i9-12900TE, 14th Generation IntelĀ® Coreā„¢, IntelĀ® Coreā„¢ i7-14700T, IntelĀ® Coreā„¢ i9-14900T, IntelĀ® Coreā„¢ i5-14500T, IntelĀ® Coreā„¢ i3-14100T, IntelĀ® Coreā„¢ i3-12100TE
Operating system
LinuxĀ® Ubuntuā„¢, Windows 10 IoT Enterprise, Windows 11 Pro
Construction
in metal housing
Mounting
VESA mounting
Applications
industrial
Protection level
IP65
Other characteristics
HMI, Ethernet
Memory size

Min.: 0 GB

Max.: 64 GB

Description

Product overview
  • 32" PCAP chassis HMI for machine control, factory automation and operator interfaces.
  • Supports 12th / 14th Gen IntelĀ® Coreā„¢ i3/i5/i7/i9 processors for scalable performance in industrial and edge applications.
  • Front IP65 protection with true-flat, edge-to-edge front glass for easy cleaning.
  • Designed for long lifecycle availability, stable hardware integration and OEM/system integrator deployment.


Key features
  • 12th / 14th Gen IntelĀ® Coreā„¢ i3/i5/i7/i9 processor options.
  • Front IP65 water- and dust-protection.
  • True-flat edge-to-edge PCAP multi-touch display (32.0" FHD).
  • VESA mount support for flexible installation.
  • Extensive I/O: HDMI, optional DisplayPort, USB 3.2 Gen1, RS232/422/485, dual IntelĀ® Ethernet (2.5Gb capable).


Certifications
  • CE
  • FCC


System highlights
  • Chipset: IntelĀ® R680E.
  • Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM).
  • Storage: default 128GB SSD; optional up to 4TB (256/512GB/1TB/2TB/4TB).
  • Ethernet: 2 x IntelĀ® Ethernet Controller (platform supports 2.5Gb capable ports).
  • Security: TPM 2.0.
  • OS options: Windows 10/11 IoT Enterprise, Windows 11 Pro, Linux Ubuntu 24.04 (Wake on Touch not supported on Linux).


Display
  • Size: 32.0 inches; Resolution: 1920 x 1080 (FHD).
  • Touch / Glass: Projected Capacitive (PCAP) multi-touch, true-flat edge-to-edge glass.
  • Brightness: 400 nits; Contrast: 4000:1; Viewing angles: 89/89/89/89.
  • Active area: 698.4 x 392.85 mm.


Mechanical
  • Dimensions: 777.6 x 477.6 x 64.5 mm.
  • Weight: 20 kg.
  • Enclosure: metal housing; cooling: fan design; VESA mount supported.


Environment
  • Operating humidity: 10%ā€“90% RH (non-condensing).
  • Operating temperature: 0Ā°C to 50Ā°C; Storage: -10Ā°C to 60Ā°C.
  • Front IP rating: IP65.


I/O and expansion
  • USB: 4 x USB 3.2 Gen1 Type-A.
  • Serial: 1 x RS232/422/485 (default RS232).
  • LAN: 2 x Gigabit RJ45 (platform supports 2.5Gb capability).
  • Video: 1 x HDMI 2.0b (up to 4096x2160@60Hz); optional 1 x DP1.4a (DP++).
  • Audio: Mic in, Line out, 2 x speakers.
  • Expansion: M.2 2280 M-Key (NVMe SSD), M.2 2230 E-Key (Wiā€‘Fi).
  • Power input: 24V DC via lockable Din4 connector; adapter: 24V 200W.


Control and buttons
  • 1 x Power button; 1 x Reset button.


Accessories
  • 100~240V AC to 24V DC adapter (24V 200W), power cord, VESA screws.


Applications
  • Machine control, factory automation and operator HMI.
  • Industrial edge computing and OEM integrations requiring easy cleaning and front IP65 protection.


Technical specifications
  • Model: W32IAD7T-PCA3
  • Processor options: IntelĀ® Coreā„¢ i3-12100TE (default); optional i5-12500TE, i7-12700TE, i9-12900TE; i3-14100T, i5-14500T, i7-14700T, i9-14900T.
  • Chipset: IntelĀ® R680E; Memory: 2 x SO-DIMM up to 64GB (non-ECC).
  • Storage: default 128GB SSD; optional 256/512GB/1TB/2TB/4TB; M.2 NVMe support.
  • Ethernet: 2 x IntelĀ® Ethernet Controller; TPM 2.0.
  • Display: 32.0" FHD, PCAP multi-touch, 400 nits, 4000:1 contrast.
  • I/O: 4 x USB 3.2 Gen1, 1 x RS232/422/485, 2 x LAN RJ45, 1 x HDMI 2.0b, optional DP1.4a, audio in/out, 2 x speakers.
  • Mechanical: 777.6 x 477.6 x 64.5 mm; weight 20 kg; metal housing; fan-cooled; VESA mount.
  • Environment: Operating 0Ā°Cā€“50Ā°C; Storage -10Ā°Cā€“60Ā°C; 10%ā€“90% RH non-condensing; Front IP65.
  • Certifications: CE, FCC.
