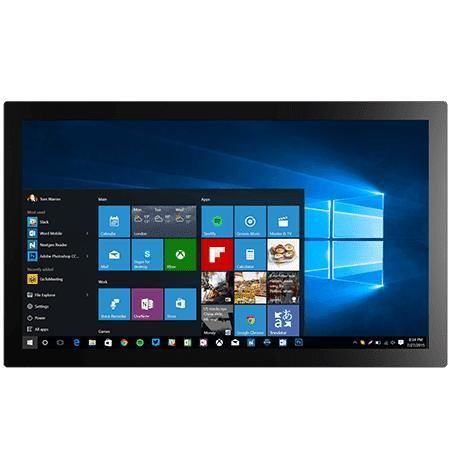

Multitouch screen panel PC W43IAD7T-PCA3

PCAP capacitive touch screen43"1920 x 1080

Overview
The W43IAD7T-PCA3 is a 43-inch PCAP chassis HMI engineered for machine control, factory automation and operator interfaces. It integrates 12th/14th Gen Intel® Core™ processor options, a true-flat edge-to-edge projected capacitive multi-touch panel, front IP65 protection and a metal enclosure with VESA mounting for flexible industrial integration.

Key features

• 12th / 14th Gen Intel® Core™ processors (i3 / i5 / i7 / i9)
• Projected Capacitive (PCAP) multi-touch, true-flat edge-to-edge glass
• Front IP65 water and dust protection
• VESA-compatible mounting for racks and consoles
• Comprehensive I/O: HDMI, optional DisplayPort, USB 3.2 Gen1, RS232/422/485, dual Intel® Ethernet (including 2.5 Gb capable ports)

Design & operation

• Scalable processing options for multitasking and real-time control in industrial and edge environments.
• Highly responsive PCAP touchscreen supporting multi-gesture input for intuitive operator control.
• True-flat front surface for easy cleaning and hygienic maintenance in production areas.
• Low-power thermal design with active fan cooling for continuous 24/7 operation.

Certifications

• CE
• FCC

Technical specifications

• Model: W43IAD7T-PCA3
• Brand: Winmate
• Processor (examples): Intel® Core™ i3-12100TE (default, up to 4.00 GHz); optional i5-12500TE, i7-12700TE, i9-12900TE; 14th Gen options i3-14100T / i5-14500T / i7-14700T / i9-14900T
• Chipset: Intel® R680E
• Memory: 2 × non-ECC SO-DIMM, up to 64 GB (32 GB per slot)
• Storage: 128 GB SSD default; optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; M.2 2280 M-Key (NVMe)
• Ethernet: 2 × Intel® Ethernet Controller (includes 2.5 Gb capable ports)
• Security: TPM 2.0
• OS (optional): Windows 10 IoT Enterprise 64-bit, Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 24.04 (Linux: Wake on Touch not supported)
• Display: 43" FHD 1920×1080, PCAP multi-touch, 400 nits, 3000:1 contrast, viewing angles 89/89/89/89
• Active area: 940.896 × 529.254 mm
• Dimensions (W×H×D): 1028.8 × 617 × 64.5 mm; Weight: 27.3 kg
• Mounting: VESA mount (rear)
• Enclosure: Metal housing; Cooling: fan design
• Operating humidity: 10%–90% RH non-condensing; Operating temp: 0°C–50°C; Storage temp: -10°C–60°C
• IP rating: Front IP65
• I/O: 4 × USB 3.2 Gen1 Type-A; 1 × RS232/422/485 (default RS232); 2 × Gigabit LAN RJ45; 1 × HDMI 2.0b (up to 4096×2160@60Hz); optional 1 × DP1.4a DP++ (up to 4096×2160@60Hz)
• Audio: Mic-in, Line-out, 2 × speakers
• Expansion: M.2 2280 M-Key (NVMe), M.2 2230 E-Key (Wi‑Fi)
• Indicators: Power LED, Storage LED
• Power input: 24 V DC Din4 pin (lockable); Adapter: 24 V 200 W (accessory)
• Accessories: 100–240 V AC to DC adapter, power cord, VESA screws
