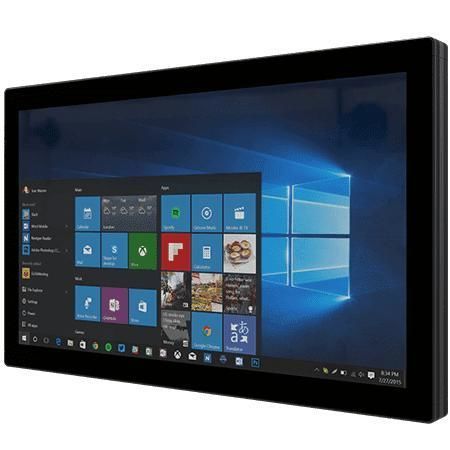

Multitouch screen panel PC W32IF7T-PCA3

PCAP capacitive touch screen32"1920 x 1080

Product Overview
The W32IF7T-PCA3 is a 32-inch standalone industrial Panel PC designed for machine control, factory automation and operator HMI. Equipped with Intel® 9th Gen Core™ i3/i5/i7 (Coffee Lake Refresh) processors and a projected capacitive (PCAP) multi-touch display, it provides a flat, easy-to-clean front with Front IP65 protection and multiple mounting options (VESA and Yoke). The unit targets OEMs, system integrators and industrial buyers requiring long-term availability and robust I/O for mission‑critical installations.

Key Features

• Intel® 9th Gen Core™ i3/i5/i7 processor options (Coffee Lake Refresh)
• 32.0" PCAP multi-touch display with true flat edge-to-edge front
• Front IP65 protection against water and dust
• Multiple mounting: VESA and Yoke options
• Extensive I/O including USB 3.x, RS232/422/485 serial, dual Gigabit LAN
• M.2 expansion for NVMe/SATA and Wi‑Fi module

Certifications

• CE
• FCC

Product Details

• PCAP Multi‑Touch: high-sensitivity projected capacitive touch supporting multi-finger gestures (pinch/zoom, rotate, drag-and-drop)
• Thermal and Power Design: optimized heat dissipation and low power profile for continuous operation
• Mechanical Integration: metal housing with rear and VESA mounting for racks, consoles and industrial enclosures

IO & Expansion Highlights

• 4 x USB 3.2 Gen1 Type-A ports
• 1 x configurable serial port (RS232/422/485)
• 2 x Intel® Gigabit LAN (RJ45)
• Display outputs: DP 1.2 (standard), optional HDMI 1.4
• M.2 slots: 2280/2242 M-Key (NVMe/SATA SSD) and 2230 E-Key (Wi‑Fi)

Use Cases / Best For
Machine control, factory automation, operator HMI, industrial kiosks and other applications requiring a large touchscreen, wide connectivity and front IP65 protection.

Technical specifications

• Display: 32.0 inches, Projected Capacitive Multi‑Touch, 1920 x 1080, 400 nits, 4000:1 contrast
• Active area: 698.4 x 392.85 mm; viewing angles 89/89/89/89
• Processor (options): Intel Core i7-9700TE (1.8 GHz up to 3.8 GHz) default; i5-9500TE, i3-9100TE optional
• Chipset: Intel® Q370
• Memory: 2 x non-ECC SO-DIMM, up to 64 GB
• Storage: 128 GB SSD default; optional 256/512 GB / 1 TB / 2 TB; 2 x SATA III for 2.5" drives (RAID 0/1 optional)
• Ethernet: 2 x Intel® Gigabit LAN
• Security: TPM 2.0
• OS: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu 20.04 optional
• Wireless: optional via M.2 Wi‑Fi module
• Dimensions: 777.6 x 477.6 x 64.3 mm; Weight: 14.8 kg
• Mounting: VESA and Yoke options; Enclosure: metal housing; Cooling: fan design
• Environment: Operating 0°C to 50°C; Storage -10°C to 60°C; Humidity 10%–90% RH non-condensing
• Front IP Rating: IP65
• I/O selection: 4 x USB3.2 Gen1, 1 x RS232/422/485, 2 x RJ45 Gigabit, 1 x DP1.2 (std), optional HDMI 1.4, Mic-in, Line-out, 2 x speakers
• Expansion: 1 x M.2 2280/2242 M-Key, 1 x M.2 2230 E-Key
• Indicators: power LED, storage LED
• Power input: 1 x 24V DC Din4-pin; Accessories: 100~240V AC→DC adapter, power cord, VESA screws
