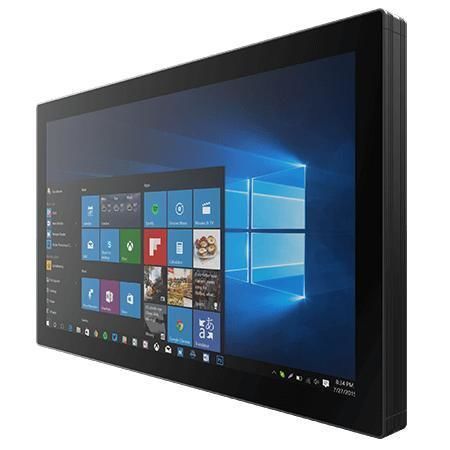

Multi-touch screen panel PC W32IT7T-PCA3

PCAP capacitive touch screen32"1920 x 1080

Overview
Winmate W32IT7T-PCA3 is a 32-inch PCAP standalone HMI Panel PC powered by the Intel® 11th Generation Core™ i5-1135G7 (Tiger Lake UP3). It is built for machine control, factory automation and operator HMI applications requiring industrial-grade front protection, easy cleaning and flexible mounting options.

Key Features

• Intel® Core™ i5-1135G7 (Tiger Lake UP3) processor
• 32.0" Full HD projected-capacitive (PCAP) multi-touch display
• Front IP65 protection and true-flat edge-to-edge front
• Multiple mounting: VESA, yoke and desktop options
• Comprehensive I/O: USB 3.2, RS232/422/485 serial, 2x Gigabit Ethernet, DP/HDMI, audio
• M.2 expansion slots for NVMe/SATA SSD and Wi‑Fi module

Certifications
CE, FCC

Product Details

• PCAP Multi-Touch Screen: Projected-capacitive multi-touch with high sensitivity and a true-flat front for easy cleaning and hygienic maintenance.
• System & Performance: Intel® Core™ i5-1135G7 with support for 2 x non-ECC SO-DIMM up to 64GB and configurable SSD storage (NVMe/SATA).
• Mechanical & Cooling: Metal housing, fan-based cooling design, dimension 777.6 x 477.6 x 64.3 mm, weight 14.8 kg; VESA and yoke mounting supported.

Technical specifications

• Display — Size: 32.0 inches
• Display — Touch / Glass: Projected Capacitive Multi Touch Screen
• Display — Resolution: 1920 x 1080
• Display — Panel Brightness: 400 nits
• Display — Contrast Ratio: 4000:1
• Display — View Angles: 89/89/89/89
• Display — Active Area: 698.4 x 392.85 mm
• System — Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• System — Memory: 2 x non-ECC SO-DIMM, up to 64GB (32GB per DIMM)
• System — Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB
• System — Ethernet controller: 2 x Intel® Ethernet Controller
• System — Security: TPM 2.0
• System — OS (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Ubuntu 22.04 (no Wake on Touch)
• System — WLAN / Bluetooth: optional (M.2 2230 E-Key)
• Mechanical — Dimension: 777.6 x 477.6 x 64.3 mm
• Mechanical — Weight: 14.8 kg
• Mechanical — Mounting: VESA mount; yoke/desktop depending on configuration
• Mechanical — Enclosure: Metal housing
• Mechanical — Cooling System: Fan design
• Environment — Operating Humidity: 10% to 90% RH, non-condensing
• Environment — Operating Temperature: 0°C to 50°C
• Environment — Storage Temperature: -10°C to 60°C
• Environment — IP rating: Front IP65
• Certification — CE, FCC
• IO Ports — USB: 4 x USB 3.2 Gen1 Type-A
• IO Ports — Serial: 1 x RS232/422/485 (Default RS232)
• IO Ports — LAN: 2 x Gigabit LAN (RJ45)
• IO Ports — Video: 1 x DP1.2 (Default); 1 x HDMI 1.4 (Optional)
• IO Ports — Audio: 1 x Mic in; 1 x Line out; 2 x Speaker
• IO Ports — Expansion: 1 x M.2 2280/2242 M-Key (NVMe/SATA); 1 x M.2 2230 E-Key (Wi‑Fi)
• IO Ports — Indicator: LED power, LED storage
• Power Input — 1 x 24V DC, Din4 pin connector; Accessories: 100~240V AC to DC adapter, power cord, VESA screws
