Flash point tester UHV-650Pensky-Martensoilinsulation oil
Add to favorites
Compare this product
Characteristics
- Test type
- flash point, Pensky-Martens
- Tested product
- oil, insulation oil
- Applications
- laboratory, for power systems, for substations, for the petroleum industry
- Configuration
- benchtop
- Other characteristics
- automatic, with LCD screen, with memory, with touchscreen, with internal data base, with heater
Description
Product Overview
Key Features
Applications of Closed Flash Point Analyzer
Operation and Measurement of Closed Flash Point Analyzer
Technical Specifications
Operation Precautions for Automatic Closed Cup Flash Point Tester
Maintenance and Care of Closed Flash Point Analyzer
FAQS
1.What types of samples can be tested by the Automatic Closed‑cup Flash Point Tester?
2.How accurate and repeatable are the test results of the Automatic Closed Cup Flash Point Tester?
3.How can I determine if this model is suitable for my laboratory?
Please provide:

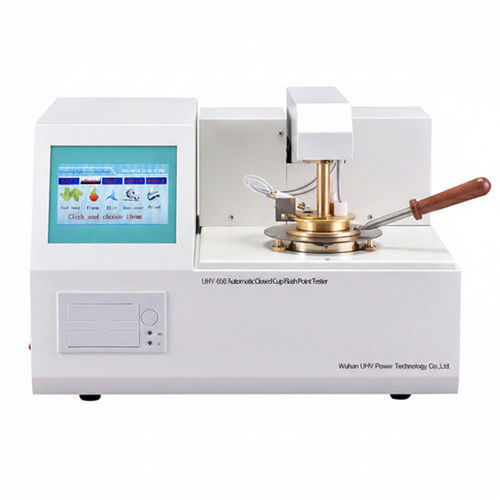

- The UHV-650 Automatic Closed‑cup Flash Point Tester determines closed‑cup flash points of transformer and other petroleum oils with automated test sequencing and atmospheric pressure correction. The unit integrates an ARM microprocessor, color LCD and resistive touchscreen for operator interaction.
Key Features
- Automatic ignition and automatic lock, display and print of results
- Automatic cooling after test completion (forced air cooling)
- Automatic atmospheric pressure correction
- Externally adjustable igniter brightness
- Heating profile conforms to ASTM D93 and GB/T 261-2008
- Accurate measurement with good repeatability and stable performance
- Integrated thermal printer and storage for up to 1000 results
Applications of Closed Flash Point Analyzer
- Laboratories, power utilities, transformer manufacturing and maintenance, petroleum and chemical industries, quality inspection and scientific research
Operation and Measurement of Closed Flash Point Analyzer
- The instrument follows the standard heating curve (ASTM D93, GB/T 261-2008), triggers automatic ignition as temperature approaches the flash point, then locks, displays and prints the result while initiating automatic cooling.
Technical Specifications
- Model: UHV-650
- Test type: closed cup, automatic
- Display: color LCD; Operation: resistive touchscreen
- Measuring range: room temperature ~ 350 ℃
- Temperature detection: platinum resistance (Pt)
- Repeatability: >110 ℃: ±2 ℃; ≤110 ℃: ±1 ℃
- Ignition: electric ignition; Igniter brightness: externally adjustable
- Information storage: up to 1000 analysis results
- Cooling method: forced air cooling
- Printer: thermal printer
- Standards: ASTM D93, GB/T 261-2008
- Power source: AC 220V ±11V, 50Hz ±2.5Hz
- Power consumption (work rate): ≤350 VA
- Operating temperature: 10 ℃ ~ 35 ℃
- Operating humidity: ≤85%
Operation Precautions for Automatic Closed Cup Flash Point Tester
- 1. During the testing process, users should be careful to avoid burning their hands;
- 2. After testing a sample, wait for the instrument to cool down for 20 minutes before starting a new testing process;
- 3. The instrument should be placed in a location with low air flow (such as a fume hood) to prevent external airflow from dispersing smoke and interfering with test results;
- 4. When replacing the test sample, the oil cup needs to be rinsed with the sample;
- 5. When the instrument malfunctions, the power should be cut off immediately. After the instrument cools down, professional personnel should be hired for maintenance and troubleshooting before continuing to use it to avoid accidents
Maintenance and Care of Closed Flash Point Analyzer
- 1. The instrument should be used in a non corrosive environment.
- 2. The instrument should be stored at 10-50 ℃ with a relative humidity below 85%;
- 3. If the instrument is not used for a long time, it should also be turned on regularly. Long term shutdown can accumulate dust and moisture, which may cause abnormal operation when restarted. It is recommended to turn it on at least once every two weeks for 2 hours each time
FAQS
1.What types of samples can be tested by the Automatic Closed‑cup Flash Point Tester?
- The instrument is suitable for testing:
- Transformer oil
- Lubricating oil
- Hydraulic oil
- Fuel oil
- Diesel
- Aviation fuel
- Other petroleum products and insulating liquids
2.How accurate and repeatable are the test results of the Automatic Closed Cup Flash Point Tester?
- The Automatic Closed Cup Flash Point Tester uses a high-precision temperature sensor and intelligent control system to ensure excellent repeatability and reproducibility, meeting international laboratory testing requirements.
3.How can I determine if this model is suitable for my laboratory?
Please provide:
- Sample type
- Expected flash point range
- Required testing standard
- Daily testing volume
- Data management requirements
- Our engineers will recommend the most suitable configuration based on your application
