Flash point tester UHV-655

Pensky-Martensoilfor petroleum products

Product Introduction

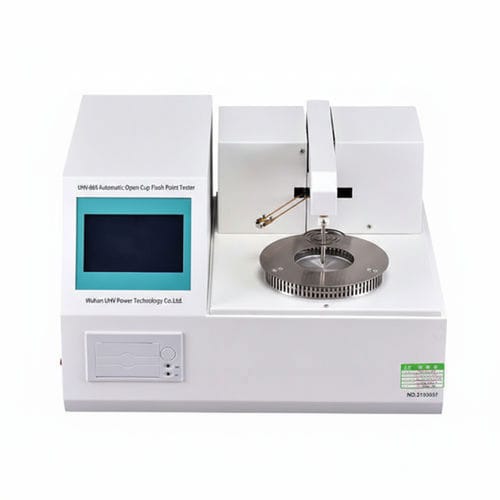

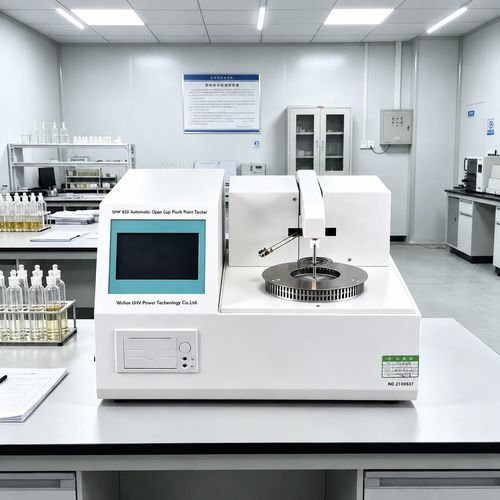

The UHV-655 Automatic Open Cup Flash Point Tester is an automatic open‑cup flash point and ignition point tester designed for measuring open flash point and fire point of transformer oil and other petroleum products in laboratory and inspection environments.

Overview / Key functions

• Automatic open‑cup measurement of flash point and ignition point with integrated test sequence, automatic cooling and user prompts.
• Simultaneous detection of flash point and ignition point and built‑in printing of results.
• High‑precision temperature control (error controlled within ±1.5°C, resolution 0.1°C) and stable repeatability under specified standards.
• Built‑in clock and data retention to display date/time and preserve results after power loss.

Standards & repeatability

• Test method and repeatability comply with GB3536-2008 (equivalent to ASTM D92) and GB/T 267-88; repeated measurements on the same sample show differences ≤ 4°C under standard conditions.

Nickname / Alternate names

• Flash Point Analyzer
• Open‑Cup Flash Point Analyzer
• Open‑Cup Flash Point Tester
• Oil flash point tester

Features of Automatic Open Cup Flash Point Tester

• Multifunctional: measures both flash point and ignition point and prints results; clock and power‑down data retention.
• High accuracy and fine resolution for reliable laboratory reporting.
• Good repeatability and conformity with international and national standards.
• High automation level reduces operator intervention and increases throughput.

Technical specifications

• Measuring range: ambient temperature to 400 °C
• Detection type: open‑cup flash point and ignition point
• Temperature sensor: platinum resistance
• Accuracy: ±1 °C (table), control within ±1.5 °C, resolution 0.1 °C
• Repeatability: meets GB3536-2008 (ASTM D92) and GB/T 267-88
• Display: color LCD
• Data storage: up to 1000 measurement results
• Ignition: electric ignition
• Cooling: forced air cooling
• Printer: dot‑matrix thermal printer
• Self‑check functions: lift bar, sweep bar, printing checks
• Power consumption: ≤ 600 VA
• Power supply: AC 220 V ±11 V, 50 Hz ±2.5 Hz
• Operating temperature: 10 ~ 35 °C
• Operating humidity: ≤ 90%
• Weight: approx. 17 kg

Notes of Automatic Open Cup Flash Point Tester

• (1) It is best to place the instrument in a ventilated kitchen during testing to prevent external airflow from affecting the test results.
• (2) The flash point sensor cannot be immersed in the sample, otherwise it will affect the measurement results.
• (3) Do not use force to pull the detection head or swipe the scanning rod.
• (4) Please note that the two circular rings of the flash point sensor should not come into contact, otherwise it may cause misoperation.
• (5) When repeating the sample, it should be ensured that the temperature of the furnace plate and sample is below 56 ℃. Excessive temperature can affect the measurement results.
• (6) Each time the sample is replaced, the open cup should be kept clean, and a good contact surface should be maintained between the outer bottom of the open cup and the heating furnace.
• (7) The sample should be placed in an open cup slightly below the scale line, as the volume of the sample increases with temperature. The amount of samples loaded each time should be kept as consistent as possible.

Scope of application of Open Cup Flash Point Tester

• The fully automatic open flash point tester is widely used in railway, aviation, power, petroleum and scientific research departments, providing scientific basis for the safety assessment of petroleum products, solvents and other flammable liquids. By accurately measuring the flash point and ignition point, relevant industries can reasonably formulate storage temperature, transportation conditions, and fire and explosion prevention measures to ensure production and operation safety.

FAQ of Automatic Open Cup Flash Point Tester

• Q: Do operators require special training?
• A: The Automatic Open Cup Flash Point Tester features a user-friendly touchscreen interface and intelligent software. Most operators can become proficient after basic training.

• Q: How do you support overseas customers?
• A: We provide online technical support, operation manuals, training videos, remote troubleshooting, spare parts supply, and prompt after-sales service for global customers.

• Q: Have you supplied this Automatic Open Cup Flash Point Tester internationally?
• A: Yes. We have extensive export experience and have supplied testing equipment to power utilities, oil laboratories, universities, industrial plants, and third-party testing organizations in many countries. Our products are professionally packed for international transportation and supported with complete export documentation and technical assistance.
