Ceramic plate 64344-00005-6608

aluminaboron nitridezirconia

Short description
This Boron Nitride (BN) ceramic block is supplied as a set of 5 identical blocks and is intended for laboratory testing, materials research and R&D. Six material variants are available to meet different experimental requirements: HB, UHB, BMA, BMZ, BAN, BSC.

Materials available

• 99% Boron Nitride (HB) – high-purity BN for standard laboratory tests
• 99.7% Boron Nitride (UHB) – ultra-high-purity BN for sensitive experiments
• Alumina + Boron Nitride (BMA) – enhanced mechanical strength composite
• Zirconia + Boron Nitride (BMZ) – high-strength composite ceramic
• Aluminium Nitride + Boron Nitride (BAN) – improved thermal conductivity
• Silicon Carbide + Boron Nitride (BSC) – excellent thermal shock resistance

Product details

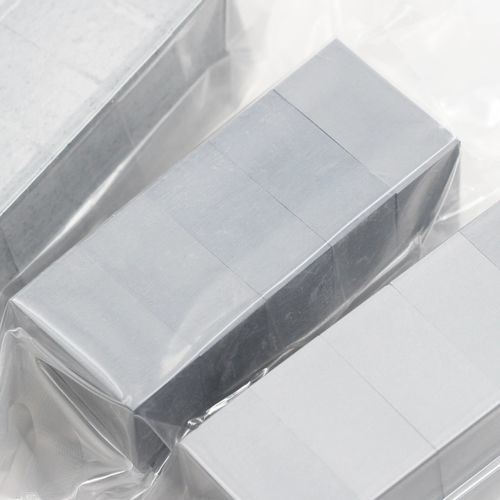

These 30×30×15 mm Boron Nitride (BN) blocks are intended for laboratory testing, materials research and R&D applications. Each sales unit contains 5 identical blocks of the selected material. Blocks are produced by hot-pressing or sintering to achieve high density and structural integrity. Suitable for high-temperature testing, electrical insulation, vacuum furnaces and similar laboratory processes.

Key Features

• Standard size: 30×30×15 mm
• Pack: 5 pieces per unit, single material per pack
• Manufacturing: hot-pressed or sintered for high density
• Applications: high-temperature testing, electrical insulation, vacuum furnaces, materials research, R&D

Product specifications (table)
Formula: BN
Forms: Blocks
Materials: Boron Nitride-Aluminium Nitride (BAN), Boron Nitride-Silicon Carbide (BSC), Boron Nitride-Zirconia (BMZ), High Purity Boron Nitride (HB), Ultra High Purity Boron Nitride (UHB), Boron Nitride-Alumina (BMA)
CAS Number: 10043-11-5
Commodity: Ceramic Block

Specifications / Tolerances
Length: 30 mm ±0.5 mm
Width: 30 mm ±0.5 mm
Thickness: 15 mm ±0.5 mm

Physical Properties (table)
Density (g/cm³): 2.2 - 2.3

Thermal Properties (table)
Thermal conductivity (W/(m·K)): 20 - 22

Notes
Sold as laboratory sample sets; each set contains five identical blocks. Manufactured to the stated dimensional tolerances and suitable for high-temperature and vacuum environments when used within material limits.

Technical characteristics / specifications

• Dimensions: 30 × 30 × 15 mm (nominal)
• Dimensional tolerance: ±0.5 mm
• Material options: HB, UHB, BMA, BMZ, BAN, BSC
• Formula: BN (boron nitride)
• CAS number: 10043-11-5
• Density: 2.2–2.3 g/cm³
• Thermal conductivity: 20–22 W/(m·K)
• Packaging: 5 pieces per unit (all blocks in a unit are identical)
• Manufacturing: hot-pressed or sintered
• Typical set weight: approx. 0.126–0.205 kg depending on material
• Intended applications: laboratory testing, R&D, high-temperature tests, electrical insulation, vacuum furnace use
