Ceramic wire

boron nitride

Product overview

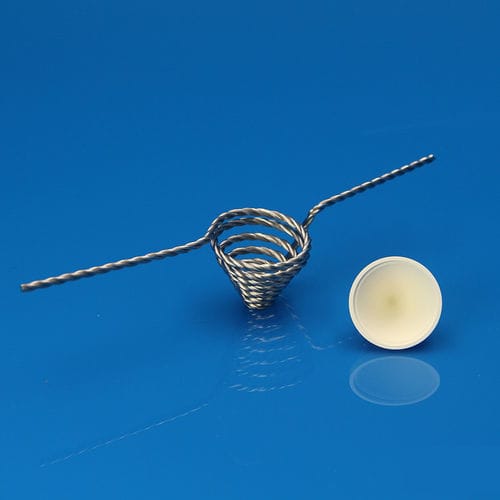

Boron nitride (BN) ceramic evaporation boat sets are designed for thermal vacuum evaporation processes. The main body is manufactured from 99% boron nitride and supplied with a reusable tungsten basket. The BN boat functions as a specialized thermal evaporation container, equivalent to an internally heated ceramic evaporation vessel, and is suitable for complete evaporation of a wide range of metals.

Suitable metals

• Au (gold)
• Ag (silver)
• In (indium)
• Sn (tin)
• Sb (antimony)
• Bi (bismuth)
• Cd (cadmium)
• Cu (copper)
• Pb (lead)
• Zn (zinc)
• Co (cobalt)
• Ni (nickel)
• Fe (iron)
• Mn (manganese)
• Nickel-chromium alloy
• High permeability alloy

Product specifications include

• Available sizes: 0.25 ml, 0.5 ml, 1 ml, 2 ml, 3 ml
• Customized sizes available on request

Product advantages

• High material purity suitable for vacuum processes
• Low gas content to minimize contamination
• High density and uniform grain structure
• Good compactness for dimensional stability
• Enables complete evaporation of most metals without material loss

Technical specifications

• Main material: 99% boron nitride (BN)
• Basket material: tungsten (reusable)
• Function: specialized thermal evaporation boat; equivalent to an internally heated ceramic evaporation container
• Available nominal volumes/sizes: 0.25 ml, 0.5 ml, 1 ml, 2 ml, 3 ml (custom sizes available)
• Applicable to a wide range of metals and alloys (see Suitable metals)
• Key material properties: high purity, low gas content, high density, uniform grain, good compactness
