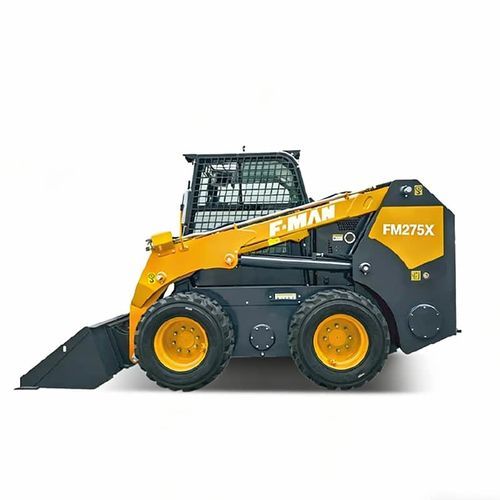

Skid steer loader FM275X

Overview
The FM275X skid steer loader is a wheeled compact machine engineered for medium to high-intensity loading, material handling and site cleaning tasks. With a 0.44 m³ flat bucket, a discharge height of 2664 mm and a compact footprint, it improves cycle efficiency and accessibility in confined worksites.

Performance and design

• Robust structure and reinforced chassis to withstand frequent loading/unloading operations
• WEICHAI engine, 74 kW / 100 HP (National III), for sustained power delivery and fuel efficiency
• Dual-speed drive (10 / 20 km/h) and hydraulic flow options (85 / 135 L/min) for adaptable working conditions
• Skid-steer layout and small turning radius provide high maneuverability and easy operation in tight areas
• Quick-attach system supports brushes, breakers, grapples and augers for multi-purpose use

Specifications

• Model: FM275X
• Type: Wheeled skid steer loader
• Overall size with bucket (mm): 3815×1880×2122
• Overall size without bucket (mm): 3045×1852×2122
• Working height (full lift): 4354 mm
• Articulation height (full lift): 3404 mm
• Discharge height (full lift): 2664 mm
• Discharge distance (full lift): 392 mm
• Standard bucket: 72
• Flat bucket capacity: 0.44 m³
• Overall weight: 3732 kg
• Rated load: 1400 kg (spec sheet) — 1200 kg appears in other documents; confirm with supplier
• Tire size: 12-16.5
• Dual speed driving: 10 / 20 km/h
• Engine brand: WEICHAI
• Engine power: 74 kW / 100 HP (National III)
• Hydraulic flow: 85 / 135 L/min
• Container quantity: 1 Unit/20GP; 3 Units/40GP

Applications

• Construction
• Municipal engineering
• Industrial material handling
• Agricultural operations

Technical notes

• Designed for frequent loading/unloading cycles and stable operation under continuous high-load conditions
• Quick-attach versatility reduces downtime by enabling fast tool changes
• Before ordering, verify the applicable rated load (1400 kg vs 1200 kg) and final configuration with the supplier
