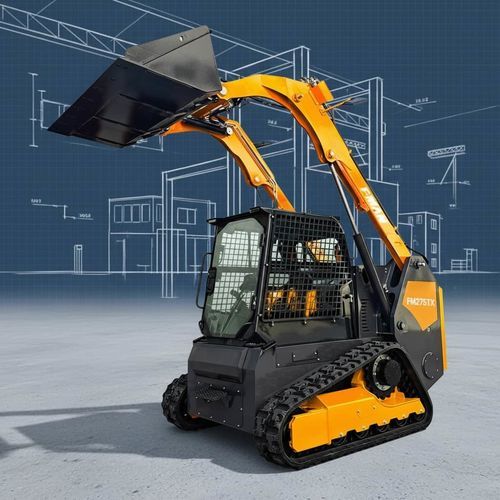

Combustion engine skid steer loader FM275TX

diesel

Product overview
The FM275TX tracked skid steer loader is designed for construction, site preparation, municipal works and foundation tasks that require increased lifting capacity and low ground pressure. With an operating weight of 4,702 kg and a rated load of 1,300 kg, it is suited to material handling on soft or uneven ground. Powered by a WEICHAI 74 kW / 100 HP (National III) engine and fitted with a 0.44 m³ flat bucket, it delivers efficient high-level loading (discharge height 2,688 mm, discharge distance 470 mm).

Key features

• Model: FM275TX
• Configuration: Track
• Overall size with bucket (mm): 3806×1920×2132
• Overall size excluding bucket (mm): 3036×1920×2132
• Operating weight (kg): 4,702
• Rated load (kg): 1,300
• Flat bucket capacity (m³): 0.44; standard bucket: 72
• Track width (mm): 320
• Engine: WEICHAI 74 kW / 100 HP (National III)
• Hydraulic flow (L/min): 85 / 135
• Travel speed (km/h): 6 / 9 (dual speed)
• Container loading: 1 Unit/20GP; 3 Units/40GP

Benefits

• Higher rated load and operating weight improve payload capacity and productivity
• Tracked undercarriage reduces ground pressure and increases traction on soft or uneven surfaces
• WEICHAI engine ensures stable power for continuous heavy-duty operation
• Compact dimensions simplify maneuvering and transport

Technical specifications

• Working height - full lift (mm): 4390
• Articulation height - full lift (mm): 3440
• Discharge height - full lift (mm): 2688
• Discharge distance - full lift (mm): 470
• Dual speed driving speed (km/h): 6/9
• Flat bucket capacity (m³): 0.44
• Overall weight (kg): 4702

Applications

• Site preparation, material handling, foundation works and municipal maintenance requiring stable traction and higher lifting capacity

Shipping and packaging

• Container loading: 1 Unit/20GP; 3 Units/40GP
• Packaging and dimensions designed to simplify logistics and transport
