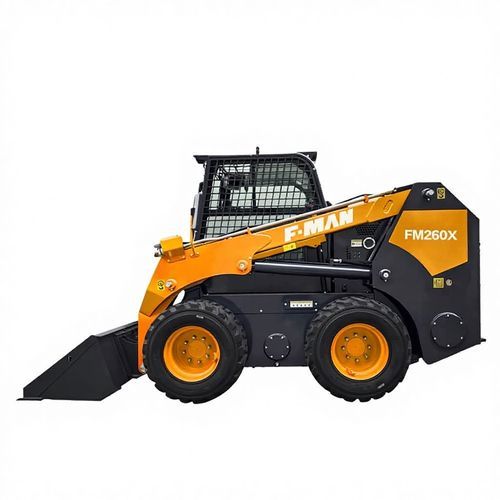

Diesel skid steer loader FM260X

Product Overview
The FM260X skid steer loader is a compact wheeled machine engineered for medium-to-high intensity tasks in construction, industrial handling and municipal operations. It combines a 0.44 m³ flat bucket, a rated load of 1,100 kg and a compact footprint to deliver efficient material loading and handling in confined working areas.

Applications

• Material loading and handling on construction sites
• In-plant and warehouse material transfers
• Municipal maintenance and site cleanup
• Landscaping and agricultural operations

Key benefits

• Rated load: 1,100 kg; operating weight: 3,482 kg
• Flat bucket 0.44 m³ (standard 72") with 2,250 mm discharge height and 490 mm discharge distance
• Compact dimensions (3,805 × 1,880 × 2,125 mm with bucket) for access in tight spaces
• YANMAR engine options: 61.3 kW / 82 HP (National III) or 53.7 kW / 71 HP (Euro 5 / EPA)
• Hydraulic flow: 85 L/min standard, 135 L/min optional; quick‑attach for fast implement changes
• Optional dual‑speed drive and higher hydraulic flow to increase productivity

Specifications (selected values for FM260X)

• Overall size with bucket (mm): 3805 × 1880 × 2125
• Overall size excluding bucket (mm): 3035 × 1850 × 2125
• Working height - full lift (mm): 4000
• Articulation height - full lift (mm): 3100
• Discharge height - full lift (mm): 2250
• Discharge distance - full lift (mm): 490
• Standard bucket (in): 72"
• Flat bucket capacity (m³): 0.44
• Overall weight (kg): 3482
• Rated load (kg): 1100
• Tyre size: 12-16.5
• Maximum driving speed (km/h): 12.5
• Dual speed driving speed: 12/23 (optional)
• Engine brand: YANMAR
• Engine power: 61.3 kW / 82 HP (National III) ; 53.7 kW / 71 HP (Euro 5 / EPA)
• Hydraulic flow (L/min): 85 / 135 (optional)
• QTY (container): 1 Unit/20GP ; 3 Units/40GP
