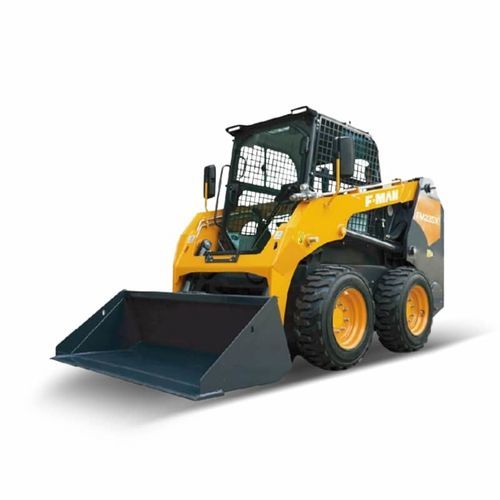

Diesel skid steer loader FM235X

Product overview
The FM235X is a wheeled skid steer loader engineered for operations in confined spaces. It has an overall weight of 2,988 kg and a rated load of 800 kg. Fitted with a 0.4 m³ flat bucket and a 2,270 mm discharge height, it is suitable for loading and moving soil, sand, gravel and construction materials. Engine options: YANMAR 34.6 kW / 46 HP (National III) or 35.5 kW / 47 HP (Euro 5/EPA). Hydraulic flow: 80 L/min. Compact dimensions (3525 × 1730 × 2011 mm) permit easy maneuvering in yards, warehouses and narrow sites.

Key specifications

• Model: FM235X
• Type: Wheeled skid steer loader
• Overall size with bucket (mm): 3525 × 1730 × 2011
• Overall size excluding bucket (mm): 2765 × 1676 × 2011
• Working height (full lift) (mm): 3970
• Articulation height (full lift) (mm): 3021
• Discharge height (full lift) (mm): 2270
• Discharge distance (full lift) (mm): 658
• Standard bucket: 66
• Flat bucket capacity: 0.4 m³
• Overall weight: 2,988 kg
• Rated load: 800 kg
• Tyre size: 10-16.5
• Maximum driving speed: 12.6 km/h
• Engine brand: YANMAR
• Engine power: 34.6 kW / 46 HP (National III); 35.5 kW / 47 HP (Euro 5/EPA)
• Hydraulic flow: 80 L/min
• Container quantity: 2 Units/20GP; 4 Units/40GP

Applications

• Landscaping and grounds maintenance
• Material handling in yards and warehouses
• Small construction tasks, utilities and site preparation

Technical specifications

• Bucket capacity: 0.4 m³ (flat bucket)
• Rated load: 800 kg; operating weight: 2,988 kg
• Hydraulic flow: 80 L/min
• Drive: wheeled, max speed 12.6 km/h
• Engine options: YANMAR 34.6 kW/46 HP (National III) or 35.5 kW/47 HP (Euro 5/EPA)
• Packing for shipment: 2 Units/20GP; 4 Units/40GP
