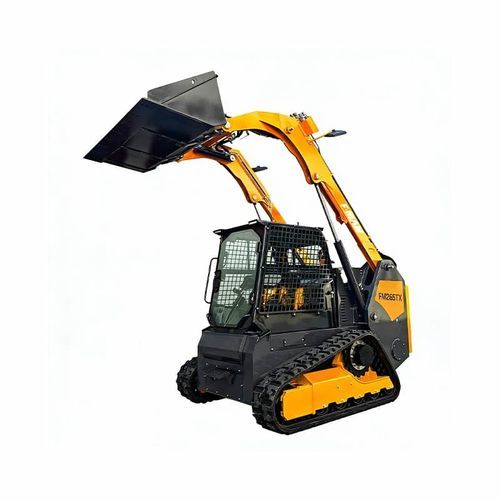

Diesel compact track loader FM265TX

Overview
The FM265TX crawler skid steer loader is a compact tracked loader engineered for constrained construction sites and soft or uneven terrain. Its tracked undercarriage improves traction and reduces slippage risk, allowing stable access and operation where wheeled machines are limited.

Key features and applications

• Rated load: 1,100 kg
• Flat bucket capacity: 0.44 m³; standard bucket: 72
• Discharge height (full lift): 2,275 mm; working height (full lift): 4,020 mm
• Suitable for municipal construction, landscaping, agriculture and site maintenance
• YANMAR engine options: China Stage III and Euro V / EPA
• Dual driving speed: 6 / 9 km/h; track width: 320 mm; optional hydraulic flow: 85 / 135 L/min
• Packing / shipping: 1 Unit/20GP; 3 Units/40GP

Specifications
Model: FM265TX
Type: Track
Overall size with bucket (mm): 3800 × 1920 × 2145
Overall size excluding bucket (mm): 3030 × 1920 × 2145
Working height - full lift (mm): 4020
Articulation height - full lift (mm): 3135
Discharge height - full lift (mm): 2275
Discharge distance - full lift (mm): 570
Standard bucket: 72
Flat bucket capacity (m³): 0.44
Overall weight (kg): 4242
Rated load (kg): 1,100
Track width (mm): 320
Dual speed driving speed (km/h): 6/9
Engine brand: YANMAR
Engine power (kW/HP): 61.3/82 (National III); 53.7/71 (Euro 5 / EPA)
Hydraulic flow (L/min): 85/135 (optional)
QTY: 1 Unit/20GP; 3 Units/40GP

Technical details

• Model: FM265TX
• Machine type: Crawler skid steer loader
• Engine brand: YANMAR
• Engine power: 61.3 kW / 82 HP (National III); 53.7 kW / 71 HP (Euro 5 / EPA)
• Rated load: 1,100 kg
• Flat bucket capacity: 0.44 m³
• Standard bucket: 72
• Overall weight: 4,242 kg
• Dimensions with bucket: 3800 × 1920 × 2145 mm
• Dimensions without bucket: 3030 × 1920 × 2145 mm
• Working height (full lift): 4020 mm
• Articulation height (full lift): 3135 mm
• Discharge height (full lift): 2275 mm
• Discharge distance (full lift): 570 mm
• Track width: 320 mm
• Dual driving speed: 6 / 9 km/h
• Hydraulic flow: 85 / 135 L/min (optional)
• Shipping quantity: 1 Unit/20GP; 3 Units/40GP
