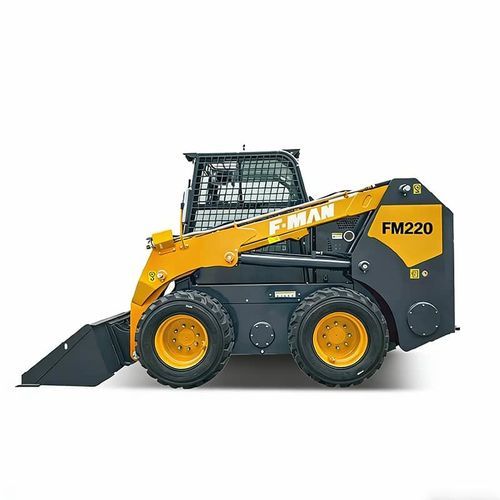

Combustion engine skid steer loader FM220

diesel

Description
The FM220 is a compact skid‑steer loader designed for landscaping, light industrial handling and small construction sites. Optimised for confined‑space operation, it features a 0.15 m³ bucket and a maximum operating height of 3140 mm.

Technical Parameters — Basic

• Operating Weight: 1640 kg
• Rated Payload: 344 kg
• Bucket Capacity: 0.15 m³
• Tipping Load: 720 kg
• Breakout Force: 8.3 kN
• Traction Force: 11.8 kN
• Overall Dimensions (L×W×H): 2675 × 980 × 1840 mm

Engine

• Engine Model: Xinchai 3B11×41
• Rated Power: 18.5 kW @ 3000 rpm
• Displacement: 1.123 L
• Fuel Consumption: 245 g/kW·h
• Emission Standard: National IV

Hydraulic System

• Hydraulic Flow (standard): 60 L/min @ 2200 rpm
• Type: Pilot control
• Hydraulic Pressure (standard): 21 MPa

Drive Train

• Travel Speed (F & R): 9.5 km/h
• Tyre: 6.5-10/5.00

Electric

• Voltage: 12 V
• Battery Capacity: 120 Ah

Service Refill Capacity

• Travelling Motor Displacement: 245 cc/r
• Cooling System: 6 L
• Engine Crankcase: 5 L
• Fuel Tank: 35 L
• Hydraulic Tank: 14 L

Dimensions & Working Parameters

• Max. Operation Height: 3140 mm
• Bucket Pin Height: 2371 mm
• Cab Roof Height: 1840 mm
• Max. Height at Bucket Leveled: 2240 mm
• Length without Attachment: 1960 mm
• Length with Standard Bucket: 2675 mm
• Dumping Height: 1795 mm
• Reach Rollback: 540 mm
• Wheelbase: 722 mm
• Ground Clearance: 145 mm
• Front Turning Radius without Attachment: 610 mm
• Front Turning Radius: 1935 mm
• Rear Turning Radius: 820 mm
• Tail Length: 777 mm
• Center Distance between Two Wheels: 830 mm
• Bucket Width: 980 mm
• Dumping Angle at Max. Height: 38°
• Bucket Angle on Ground: 28°
• Bucket Rollback Angle at Max. Height: 97°
• Start Angle: 25°

Optional / Accessories

• Cold Start
• Open Cab
• Solid Tyre
• Spiral Drill
• Excavator
• Bevel Sweeper
• Closed Sweeper
• Fork
• Snow Blade
• Snow Blower
• Tree Planter
• Four In One Bucket
• Detachable Bucket Tooth
• Detachable Bucket Blade
• Warm Air Blower

Technical Specifications

• Model: FM220
• Brand: FMAN
• Operating Weight: 1640 kg
• Rated Payload: 344 kg
• Bucket Capacity: 0.15 m³
• Engine: Xinchai 3B11×41, 18.5 kW @ 3000 rpm, 1.123 L
• Fuel Consumption: 245 g/kW·h
• Hydraulic Flow (standard): 60 L/min @ 2200 rpm; Pressure: 21 MPa
• Travel Speed (F&R): 9.5 km/h
• Tyre Size: 6.5-10/5.00
• Fuel Tank Capacity: 35 L; Hydraulic Tank Capacity: 14 L; Cooling System: 6 L; Engine Crankcase: 5 L
• Overall Dimensions (L×W×H): 2675 × 980 × 1840 mm
