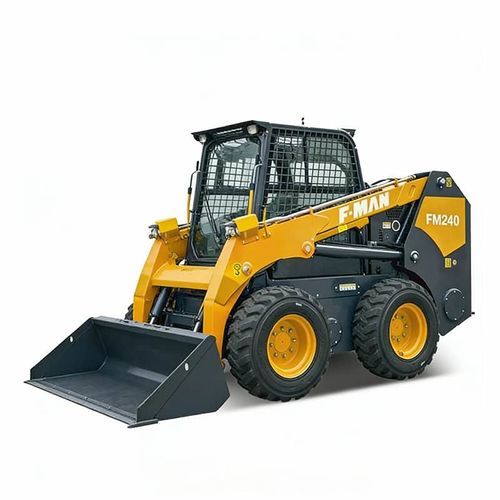

Skid steer loader with combustion engine FM240

Overview
The FM240 is a skid steer loader designed for material handling in confined and varied worksites. Operating weight: 2,900 kg; rated payload: 899 kg; bucket capacity: 0.48 m³. Powered by the A498BT1-75 engine (36.7 kW / 2,500 rpm) with a max operation height of 3,750 mm, it is suited to landscaping, small construction tasks and yard logistics.

Technical Parameters — FM240

BASIC

• Operating Weight (kg): 2900
• Rated Payload (kg): 899
• Bucket Capacity (m³): 0.48
• Tipping Load (kg): 1600
• Breakout Force (kN): 20.3
• Traction Force (kN): 18.9
• L×W×H (mm): 3220 × 1820 × 2000

ENGINE

• Engine Model: A498BT1-75
• Rated Power: 36.7 kW / 2500 rpm
• Displacement (L): 3.168
• Fuel Consumption (nominal): 10.6 L/h
• Stroke (mm): 98
• Bore (mm): 105
• Emission Standard: Tier II

HYDRAULIC SYSTEM

• Hydraulic Flow - Standard: 74 L/min @ 2500 rpm
• Type: Mechanical
• Hydraulic Pressure - Standard (MPa): 21
• Hydraulic Flow - High Flow: (not specified)
• Loader Hydraulic Pressure (MPa): (not specified)

DRIVE TRAIN

• Travel Speed F&R (km/h): 11.5
• Tyre: 12-16.5NHS

ELECTRIC

• Voltage (V): 12
• Capacity (Ah): 120

SERVICE / REFILL CAPACITY

• Travelling Motor Displacement: 9 L
• Cooling System (L): 12
• Engine Crankcase (L): 8
• Fuel Tank (L): 83
• Hydraulic Tank (L): 65

DIMENSIONS & WORKING PARAMETERS

• Max. Operation Height (mm): 3750
• Bucket Pin Height (mm): 2920
• Cab Roof Height (mm): 2000
• Max. Height at Bucket Leveled (mm): 2730
• Length without Attachment (mm): 2420
• Length with Standard Bucket (mm): 3220
• Dumping Height (mm): 2260
• Reach Rollback (mm): 640
• Wheelbase (mm): 1050
• Ground Clearance (mm): 210
• Front Turning Radius without Attachment (mm): 1200
• Front Turning Radius (mm): 2010
• Rear Turning Radius (mm): 1520
• Tail Length (mm): 960
• Center Distance between Two Wheels (mm): 1240
• Bucket Width (mm): 1835
• Dumping Angle at Max. Height (°): 40
• Bucket Angle on Ground (°): 28
• Bucket Rollback Angle at Max. Height (°): 94
• Start Angle (°): 27

Optional

• Cold Start
• Open Cab
• Solid Tyre
• Centralized Pressure Measurement
• Rearview Mirror Heating Function
• Warm Air Blower
• Excavator
• Bevel Sweeper
• Tree Planter
• Four In One Bucket
• Detachable Bucket Tooth
• Detachable Bucket Blade
• Spiral Drill
• Closed Sweeper
• Snow Blade
• Fork

Key specifications

• Model: FM240
• Operating Weight: 2900 kg
• Rated Payload: 899 kg
• Bucket Capacity: 0.48 m³
• Tipping Load: 1600 kg
• Breakout Force: 20.3 kN
• Traction Force: 18.9 kN
• Dimensions (L×W×H): 3220 × 1820 × 2000 mm
• Engine Model: A498BT1-75
• Rated Power: 36.7 kW @ 2500 rpm
• Displacement: 3.168 L
• Fuel Consumption: 10.6 L/h
• Hydraulic Flow (standard): 74 L/min @ 2500 rpm
• Hydraulic Pressure (standard): 21 MPa
• Drive Speed (F&R): 11.5 km/h
• Tyre Size: 12-16.5NHS
• Electrical System: 12 V, 120 Ah
• Fuel Tank: 83 L
• Hydraulic Tank: 65 L
• Max. Operation Height: 3750 mm
• Bucket Pin Height: 2920 mm
• Ground Clearance: 210 mm
• Wheelbase: 1050 mm
• Bucket Width: 1835 mm
