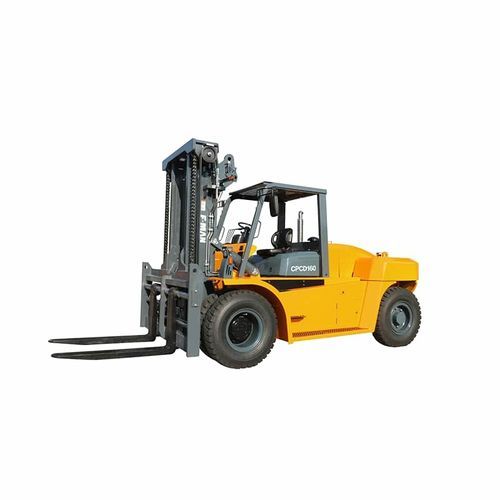

Diesel forklift CPCD160harborindustrialfor materials handling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Applications
- for materials handling, industrial, harbor
- Other characteristics
- counterbalanced, heavy-duty, for heavy loads
- Carrying capacity
Min.: 16,000 kg
(35,274 lb)Max.: 16,000 kg
(35,274 lb)- Overall width
Min.: 2,620 mm
(103.1 in)Max.: 2,620 mm
(103.1 in)- Overall length
Min.: 5,885 mm
(231.7 in)Max.: 5,885 mm
(231.7 in)- Weight without load
Min.: 25,000 kg
(55,115.6 lb)Max.: 25,000 kg
(55,115.6 lb)- Overall height with mast raised
Min.: 3,300 mm
(129.9 in)Max.: 3,300 mm
(129.9 in)- Rated output
Min.: 129 kW
(175.4 hp)Max.: 142 kW
(193.1 hp)- Rated speed
Min.: 2,200 rpm
(13,823 rad.min-1)Max.: 2,300 rpm
(14,451.3 rad.min-1)
Description
Product overview
The CPCD160 is a 16-ton diesel forklift engineered for heavy industrial and port logistics applications. With a rated load of 16,000 kg, it is designed for continuous, high-intensity handling of steel, machinery and large industrial components.
Powertrain options
Two engine options are available: Yuchai YC6J175-T302 and Cummins QSF6.7. Yuchai: rated power 129 kW @ 2200 rpm, max torque 710 Nm @ 1600–1800 rpm. Cummins: rated power 142 kW @ 2300 rpm, max torque 930 Nm @ 1500 rpm. These choices balance power delivery and duty-cycle demands for heavy lifting and ramp work.
Design & structure
The machine has an unloaded weight of 25,000 kg and a heavy-duty frame that improves operational stability and impact resistance. The optimized mast is built from high-strength structural steel to resist deformation and extend service life. A wide wheelbase chassis increases lateral stability for safer manoeuvring when fully loaded.
Hydraulics & reliability
The hydraulic system offers responsive, smooth and precise lifting and lowering to improve loading/unloading efficiency and reduce operator effort. Key hydraulic and control components are validated under demanding conditions to ensure reliability for continuous heavy-duty operation.
Technical specifications
Key benefits
The CPCD160 is a 16-ton diesel forklift engineered for heavy industrial and port logistics applications. With a rated load of 16,000 kg, it is designed for continuous, high-intensity handling of steel, machinery and large industrial components.
Powertrain options
Two engine options are available: Yuchai YC6J175-T302 and Cummins QSF6.7. Yuchai: rated power 129 kW @ 2200 rpm, max torque 710 Nm @ 1600–1800 rpm. Cummins: rated power 142 kW @ 2300 rpm, max torque 930 Nm @ 1500 rpm. These choices balance power delivery and duty-cycle demands for heavy lifting and ramp work.
Design & structure
The machine has an unloaded weight of 25,000 kg and a heavy-duty frame that improves operational stability and impact resistance. The optimized mast is built from high-strength structural steel to resist deformation and extend service life. A wide wheelbase chassis increases lateral stability for safer manoeuvring when fully loaded.
Hydraulics & reliability
The hydraulic system offers responsive, smooth and precise lifting and lowering to improve loading/unloading efficiency and reduce operator effort. Key hydraulic and control components are validated under demanding conditions to ensure reliability for continuous heavy-duty operation.
Technical specifications
- Model: CPCD160
- Rated load: 16,000 kg
- Unloaded (self) weight: 25,000 kg
- Engine options: Yuchai YC6J175-T302; Cummins QSF6.7
- Yuchai rated power: 129 kW @ 2200 rpm
- Yuchai max torque: 710 Nm @ 1600–1800 rpm
- Cummins rated power: 142 kW @ 2300 rpm
- Cummins max torque: 930 Nm @ 1500 rpm
- Overall dimensions (L × W × H, without forks): 5885 × 2620 × 3300 mm
Key benefits
- 16,000 kg rated load for heavy lifting in industrial and port environments
- Two engine options to balance fuel economy and higher power reserve
- Heavy-duty frame and high-strength mast for improved durability
- Wide wheelbase for enhanced lateral stability under load
- Responsive hydraulic system for precise and efficient handling
