Diesel forklift CPCD25

ride-onfor the construction industryfor warehouse

Description

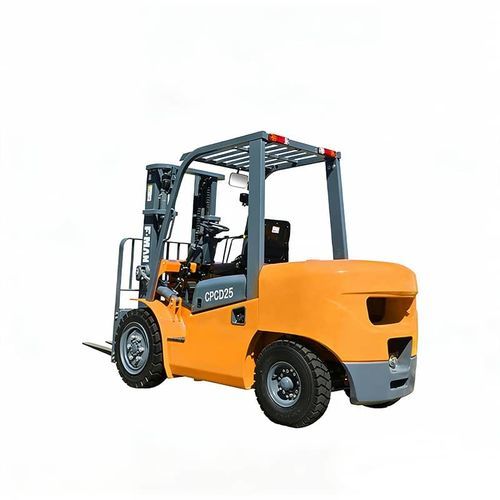

The FMAN 2.5-ton CPCD25 diesel forklift boasts powerful performance and a stable structure, designed specifically for high-frequency material handling operations. With a rated load of 2500 kg, it efficiently handles pallet stacking, loading and unloading, and material handling, making it suitable for various applications in warehousing, logistics, manufacturing, and building materials markets.
The machine has an unloaded weight of 3660 kg and a reinforced frame design, enhancing overall rigidity and impact resistance, maintaining stable performance even under heavy lifting and continuous operation. The overall dimensions (excluding forks) are 2485 × 1160 × 2070 mm, featuring a compact and agile design with light steering, enabling efficient operation in confined spaces such as warehouse aisles or loading/unloading platforms.
The power system is equipped with a 4D27G31 (Xinchang) diesel engine, with a rated power of 36.8 kW / 2500 r.p.m and a rated torque of 156 Nm / 1700–1900 r.p.m. The power output is direct and powerful, with a noticeable low-speed, high-torque characteristic, suitable for heavy-load starts and complex road conditions. The engine operates stably and reliably, with controllable maintenance costs, meeting the long-term needs of businesses.
Overall, the FMAN CPCD25 achieves a good balance between load capacity, power performance, and economy, making it a practical diesel forklift solution that combines efficiency and durability.

caractéristiques / spécifications techniques

• Model: CPCD25
• Rated load: 2500 kg
• Self weight (without load): 3660 kg
• Engine model: 4D27G31 (Xinchang)
• Rated output: 36.8 kW / 2500 r.p.m
• Rated torque: 156 Nm / 1700–1900 r.p.m
• Overall dimensions (without forks) (Length × Width × Height): 2485 × 1160 × 2070 mm
