Diesel engine forklift CPCD50

ride-onoutdoorfor warehouse

Overview

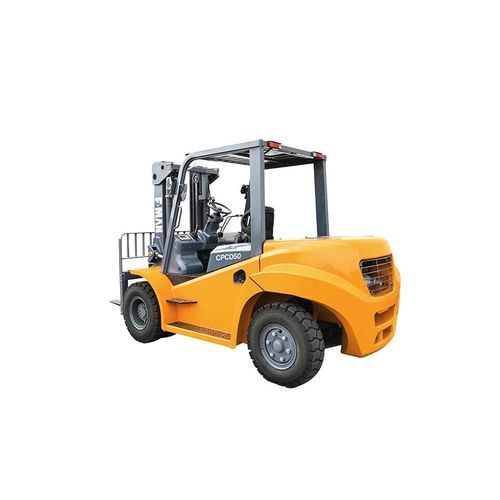

The FMAN 5-ton CPCD50 diesel forklift is engineered for continuous heavy-duty material handling with a rated load capacity of 5000 kg and a machine curb weight of 8760 kg. Reinforced frame and chassis increase rigidity and impact resistance to ensure stability and operational safety during heavy lifts and sustained use. The wide-body layout improves stability in demanding environments such as steel yards, port logistics, large factories and heavy-duty warehouses.

Powertrain
Powered by the YCA05115-T480 engine, rated at 85 kW @ 2200 rpm with 500 N·m torque at 1400–1600 rpm. The engine provides strong low-speed torque for reliable starting under load and improved gradeability while balancing fuel efficiency for long operations.

Dimensions & Design
Overall dimensions (without forks): 3630 × 2045 × 2500 mm. The wide-body design and tuned control system deliver stable, flexible steering and smooth handling. The layout facilitates accessible maintenance and reliable performance in heavy-duty handling tasks.

Specifications (table)
Item: Model - CPCD50
Rated load: 5000 kg
Self weight (without load): 8760 kg
Engine model: YCA05115-T480
Rated output: 85 kW @ 2200 rpm
Rated torque: 500 N·m @ 1400–1600 rpm
Overall dimensions (L × W × H) without forks: 3630 × 2045 × 2500 mm

Recommended products

• CPCD100 Diesel Forklift
• CPCD120 Diesel Forklift
• CPCD30 Diesel Forklift

Technical specifications

• Model: CPCD50
• Rated load: 5000 kg
• Self weight (without load): 8760 kg
• Engine model: YCA05115-T480
• Rated output: 85 kW @ 2200 rpm
• Rated torque: 500 N·m @ 1400–1600 rpm
• Overall dimensions (L×W×H) without forks: 3630 × 2045 × 2500 mm
