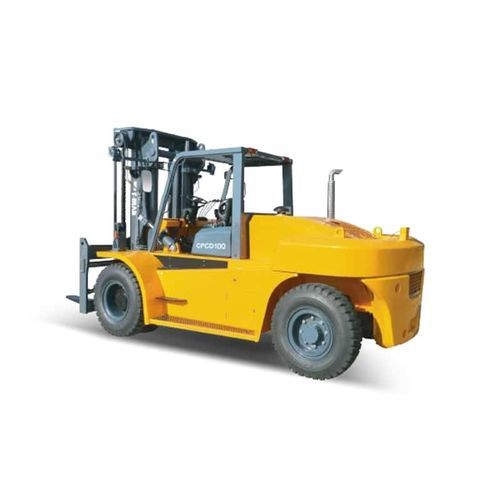

Diesel engine forklift CPCD100

ride-onharborfor the steel industry

Product Overview
The FMAN CPCD100 is a 10-ton diesel forklift designed for heavy-duty material handling in port terminals, steel logistics and large warehouses. Its high-strength frame and compact footprint enable stable load support and manoeuvrability in confined spaces during continuous operation.

Performance and design
Powered by a YCA05115-T480 diesel engine with a rated output of 85 kW @ 2200 rpm and rated torque of 500 N·m @ 1400–1600 rpm, the CPCD100 balances strong traction with fuel efficiency and responsive control. The machine maintains a stable centre of gravity and features an ergonomic cab to improve operator comfort and visibility. An optimized hydraulic system provides precise lifting, lowering and tilting actions.

Applications

• Port terminals
• Steel logistics
• Heavy machinery handling
• Large-scale warehouse loading/unloading

Key data

• Model: CPCD100
• Rated load: 10,000 kg
• Self weight (without load): 13,640 kg
• Engine model: YCA05115-T480
• Rated output: 85 kW @ 2200 rpm
• Rated torque: 500 N·m @ 1400–1600 rpm
• Overall dimensions (L × W × H) without forks: 4252 × 2268 × 2600 mm

Technical specifications

• High-strength frame for load-bearing stability and torsional resistance
• Compact structure for operation in confined spaces
• Ergonomic cab design for operator comfort and visibility
• Optimized hydraulic response for precise lifting/lowering/tilting
• Designed for continuous heavy-duty operation with emphasis on reliability
