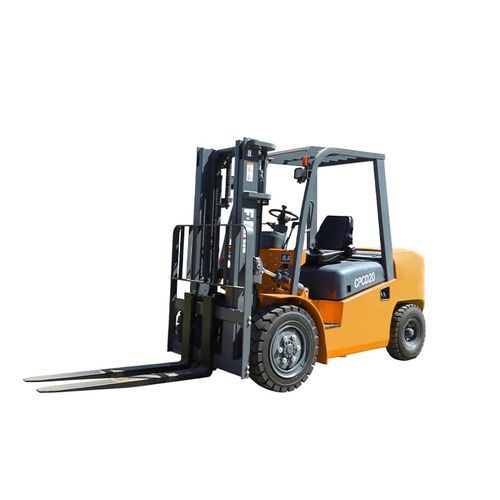

Diesel forklift CPCD20indooroutdoorfor the construction industry
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Applications
- handling, loading, unloading, for materials handling, industrial, for the construction industry, for warehouse, indoor, outdoor
- Other characteristics
- compact
- Carrying capacity
2,000 kg
(4,409.2 lb)- Overall width
1,160 mm
(45.7 in)- Overall length
2,485 mm
(97.8 in)- Weight without load
3,300 kg
(7,275.3 lb)- Overall height with mast raised
2,070 mm
(81.5 in)- Rated output
36.8 kW
(50 hp)- Rated speed
2,500 rpm
(15,708 rad.min-1)
Description
Product overview
The FMAN 2-ton CPCD20 diesel forklift is a high-performance internal combustion forklift designed for warehousing logistics, industrial manufacturing and building-materials handling. With a rated load of 2000 kg it is intended for pallet handling, stacking and loading/unloading operations at high frequency, both indoors and outdoors. It balances stability and load capacity to support safe, reliable operations and continuous material flow.
Design and performance
The machine has an unladen weight of 3300 kg, a reinforced frame and an optimized chassis center-of-gravity layout to maintain stability during lifting and travel under full load. Overall dimensions (without forks) are 2485 × 1160 × 2070 mm, offering a compact footprint suited to narrow aisles, workshop interiors and loading platforms while remaining adaptable to outdoor surfaces.
Powertrain
Equipped with a 4D27G31 (Xinchang) diesel engine, rated output is 36.8 kW at 2500 r.p.m and rated torque 156 Nm at 1700–1900 r.p.m. Power delivery is smooth with responsive acceleration and fuel-efficient operation suitable for continuous high-intensity cycles, helping reduce operating costs.
Maintenance and operator comfort
Component layout facilitates routine maintenance and repairs. The ergonomically designed operator area improves comfort, reduces downtime and supports efficient material distribution on production lines and warehouse logistics tasks.
Specifications table
Item: CPCD20
Rated load: 2000 kg
Unladen weight (without load): 3300 kg
Engine model: 4D27G31 (Xinchang)
Rated output: 36.8 kW / 2500 r.p.m
Rated torque: 156 Nm / 1700–1900 r.p.m
Overall dimensions (L × W × H) without forks: 2485 × 1160 × 2070 mm
Features / Technical specifications
The FMAN 2-ton CPCD20 diesel forklift is a high-performance internal combustion forklift designed for warehousing logistics, industrial manufacturing and building-materials handling. With a rated load of 2000 kg it is intended for pallet handling, stacking and loading/unloading operations at high frequency, both indoors and outdoors. It balances stability and load capacity to support safe, reliable operations and continuous material flow.
Design and performance
The machine has an unladen weight of 3300 kg, a reinforced frame and an optimized chassis center-of-gravity layout to maintain stability during lifting and travel under full load. Overall dimensions (without forks) are 2485 × 1160 × 2070 mm, offering a compact footprint suited to narrow aisles, workshop interiors and loading platforms while remaining adaptable to outdoor surfaces.
Powertrain
Equipped with a 4D27G31 (Xinchang) diesel engine, rated output is 36.8 kW at 2500 r.p.m and rated torque 156 Nm at 1700–1900 r.p.m. Power delivery is smooth with responsive acceleration and fuel-efficient operation suitable for continuous high-intensity cycles, helping reduce operating costs.
Maintenance and operator comfort
Component layout facilitates routine maintenance and repairs. The ergonomically designed operator area improves comfort, reduces downtime and supports efficient material distribution on production lines and warehouse logistics tasks.
Specifications table
Item: CPCD20
Rated load: 2000 kg
Unladen weight (without load): 3300 kg
Engine model: 4D27G31 (Xinchang)
Rated output: 36.8 kW / 2500 r.p.m
Rated torque: 156 Nm / 1700–1900 r.p.m
Overall dimensions (L × W × H) without forks: 2485 × 1160 × 2070 mm
Features / Technical specifications
- Model: CPCD20
- Rated load: 2000 kg
- Unladen weight (without load): 3300 kg
- Engine model: 4D27G31 (Xinchang)
- Rated output: 36.8 kW / 2500 r.p.m
- Rated torque: 156 Nm / 1700–1900 r.p.m
- Overall dimensions (L×W×H) without forks: 2485 × 1160 × 2070 mm
