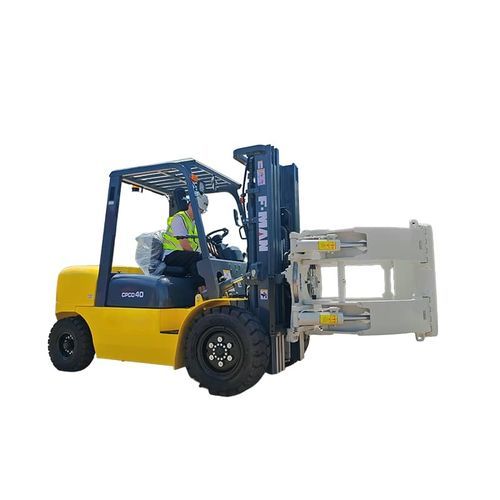

Diesel engine forklift CPCD45

ride-onoutdoorfor warehouse

Product overview
The FMAN CPCD45 4.5-ton diesel forklift is engineered for heavy industrial material handling such as steel distribution, port operations and large warehouses. With a rated load of 4500 kg and a self weight of 6800 kg, its high-strength structure enables stable loading, unloading and stacking during continuous operation.

Power system
Equipped with the 4D35Y41 (Xinchai) diesel engine, rated output 36.8 kW / 2500 r.p.m and rated torque 156 Nm / 1700–1900 r.p.m. The powertrain delivers smooth output and strong low-speed torque for heavy-load starts and uneven surfaces while maintaining fuel economy.

Dimensions and maneuverability
Overall dimensions (without forks): 2485 × 1160 × 2070 mm. The compact footprint and high load capacity provide good mobility in warehouse aisles, workshops and outdoor loading areas. The design facilitates routine maintenance to reduce downtime.

Summary
The CPCD45 balances power, rated load and operational efficiency, making it suitable for continuous heavy-duty material handling applications requiring reliable performance.

Technical specifications

• Model: CPCD45
• Rated load: 4500 kg
• Self weight (without load): 6800 kg
• Engine model: 4D35Y41 (Xinchai)
• Rated output: 36.8 kW / 2500 r.p.m
• Rated torque: 156 Nm / 1700–1900 r.p.m
• Overall dimensions (L × W × H) without forks: 2485 × 1160 × 2070 mm
