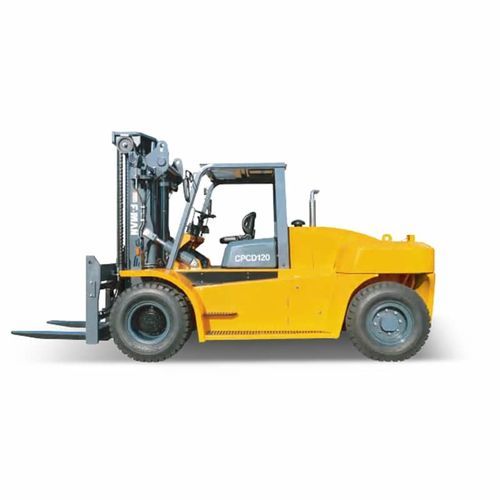

Diesel engine forklift CPCD120

ride-onharborfor the steel industry

Product overview
The FMAN CPCD120 is an industrial diesel forklift engineered for continuous heavy-duty material handling. Its powertrain, structural components and operational stability have been optimized to support a rated load of 12,000 kg, making it suitable for port logistics, steelworks and heavy industrial environments.

Engine & power
Equipped with a CA6DF3 (Xichai) diesel engine delivering 118 kW @ 2200 r.p.m and 640 Nm @ 1500 r.p.m. High low-end torque ensures reserve power for loaded starts, slope operations and sustained high-intensity cycles while aiding fuel efficiency.

Structure & hydraulic system
The mast is manufactured from high-strength structural steel to resist bending and torsion, reducing deformation risk during heavy lifts. The hydraulic system provides fast response and smooth, precise lifting, lowering and tilting actions to improve handling efficiency and reduce operator fatigue. Key components and overall structure are validated under demanding conditions for durability and reliability.

Dimensions & weight
Unladen weight: 18,700 kg, providing a stable center of gravity under load. Overall dimensions (L × W × H, without forks): 4800 × 2600 × 3060 mm. Wide-body frame design improves lateral stability and handling under full-load scenarios.

Recommended applications
Suitable for port logistics, steel industry, heavy manufacturing and large-scale warehouses requiring high-capacity material handling.

Technical specifications

• Model: CPCD120
• Rated load: 12,000 kg
• Unladen weight (without load): 18,700 kg
• Engine model: CA6DF3 (Xichai)
• Rated power: 118 kW @ 2200 r.p.m
• Rated torque: 640 Nm @ 1500 r.p.m
• Overall dimensions (L × W × H, without forks): 4800 × 2600 × 3060 mm
