Diesel forklift CPCD30

for the construction industryfor warehouseindustrial

Overview

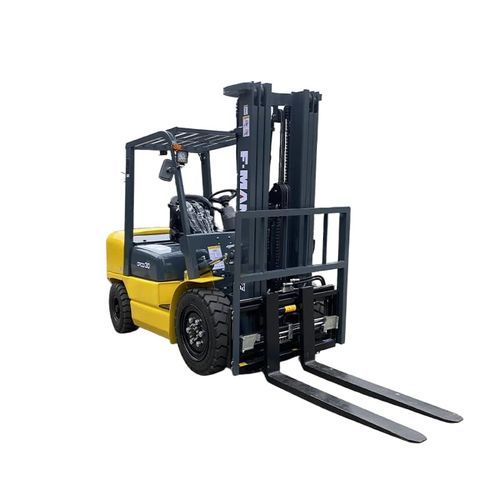

The FMAN 3-ton CPCD30 diesel forklift is designed for high-efficiency, medium-to-heavy-duty material handling operations. With a rated load of 3,000 kg and a machine weight of 4,140 kg, it supports stable lifting cycles and consistent performance in continuous workflows. The reinforced vehicle structure improves chassis stability and balance under load, reducing roll and improving control.

Power and performance
The powertrain uses a 4D27G31 (Xinchang) diesel engine delivering 36.8 kW at 2,500 r.p.m and 156 Nm at 1,700–1,900 r.p.m. The engine provides smooth power delivery and strong low-speed torque for loaded starts and operation on uneven surfaces. Fuel-efficient tuning helps lower long-term operating costs.

Design and operation
Overall dimensions (without forks): 2765 × 1230 × 2090 mm. The layout balances load capacity and maneuverability for aisles, workshops and outdoor yards. Responsive controls and simplified maintenance access reduce operator fatigue and downtime, facilitating faster servicing and predictable maintenance planning.

Applications
Suitable for industrial manufacturing, warehousing and distribution centers, building materials handling and other medium-to-heavy-duty material handling scenarios requiring continuous operation and reliable lifting capacity.

Specifications

• Model: CPCD30
• Rated load: 3,000 kg
• Self weight (without load): 4,140 kg
• Engine model: 4D27G31 (Xinchang)
• Rated power: 36.8 kW / 2,500 r.p.m
• Rated torque: 156 Nm / 1,700–1,900 r.p.m
• Overall dimensions (L × W × H, without forks): 2765 × 1230 × 2090 mm
• Reinforced vehicle structure for improved chassis stability and balance
• Fuel-efficient engine tuning to reduce operating costs
• Responsive control system and simplified maintenance access
