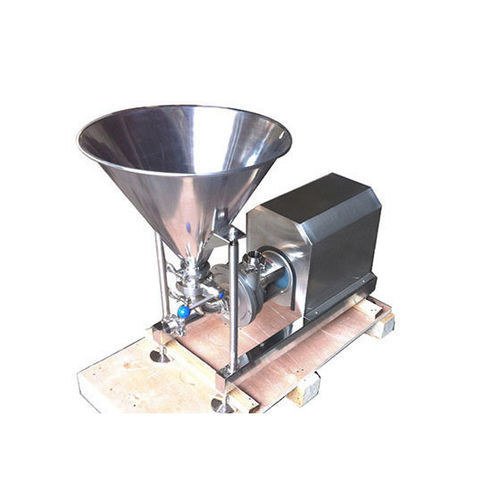

Rotor-stator homogenizer TRL-H

continuoussolid/liquidfor liquids

Overview
The TRL-H Shear pump is a high-shear inline blender designed to blend, emulsify, disperse, dissolve and homogenize a wide range of products, from simple formulations to demanding applications in food and process industries.

How it works
The TRL-H series uses a unique impeller-vane and inducer configuration that produces intense local shear and rapid fluid recirculation. This design enables fast dissolution and hydration of stabilizers, gums, powders, sugars and other shear-sensitive ingredients, delivering significantly reduced processing times compared with conventional paddles or agitators.

Structural features
The TRL-H is built to provide high shear rates via its impeller-vane geometry while maintaining a compact footprint. Contact parts for the pump and funnel are manufactured in AISI 316 stainless steel for corrosion resistance and hygienic compatibility. The hygienic, CIP-capable construction reduces manual cleaning and downtime and supports continuous heavy-duty operation.

Specifications

• Outline and technical drawings available as product images (diagrams)
• Maximum handling capacity: up to 80 m3/hr

Application features

• Large reductions in processing time versus conventional agitation
• Suitable for a wide range of batch sizes
• Low noise and stable operation
• Designed for low-stress handling of sensitive products
• Easy to clean: CIP/SIP compatible or manual cleaning options
• Simple maintenance procedures
• Available with multiple sealing material options

Characteristics / Technical specifications

• Model / Series: TRL-H
• Primary functions: blending, emulsifying, dispersing, dissolving, homogenizing
• Typical applications: skimmed milk processing, toppings, puddings, sauces, ice cream mixing, sugar blending, salad dressings
• Contact materials: AISI 316 stainless steel (pump and funnel)
• Cleaning: CIP-capable hygienic design (reduces manual cleaning and downtime)
• Capacity: up to 80 m3/hr
• Key design features: impeller-vane and inducer configuration optimized for high shear rate and rapid hydration/dissolution
• Maintenance: simple maintenance with options for different sealing materials
