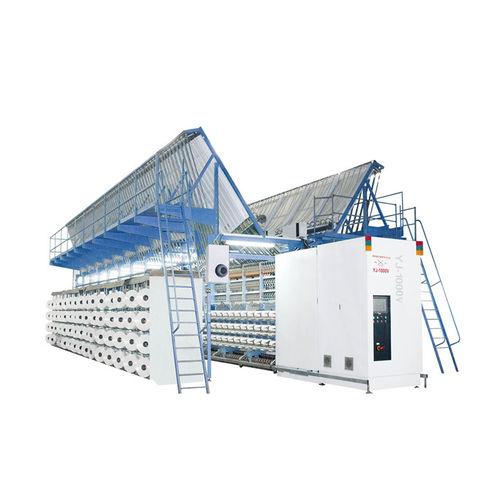

Draw texturing machine YJ1000V

draw texturing machine
draw texturing machine
Add to favorites
Compare this product


Characteristics

Type
draw

Description

MODEL YJ1000V-240/264/288 HIGH SPEED ELECTRON-CONTROLLED DRAW -TEXTURING MACHINE Main Datas Spindle number - 240spindles (standard), 264spindles,288spindles Max. mechanical speed - 1000m/min (W2 feed roll speed) Twister - Type 8 disc friction unit First heater - Biphenyl/2000mm Second heater - Bipheny/1460mm Cooling rail length - 1100mm Diameter of take-up roll - Φ100mm Diameter of feed roll - Φ75mm Diameter of oiling roll - Φ75mm Distance of both spindles - 110mm Pitch - 1440mm Denier of fiber - 55 - 250 dtex Package of take - up - Φ250×250mm Overall size - 18780×6724×5250(Fixed creel) power Whole power - 200.5KW Effective power - 90.5KW Use This machine is used to make the polyester fiber and polypropylene fiber to be low, middle and high stretch fiber through tw1ster. If equipped with intermingle nozzle, this machine can make intermingle fiber. Feature 1.The first heater (deforming heater) and the second heater ( setting heater) adopt biphenyl air heating. The computer controls the heating and temperature control. The precision of temperature control is +1C, assure every spindle s temperature to be almost same. This is beneficial for even dying. 2.The machine has the features of simple structure, reliable transmission ratio, low noise level and easy technological adjustment. 3.The advanced designed electrical control system makes the operation simple, running reliable. Man -machine interaction can be realized by touching screen.
