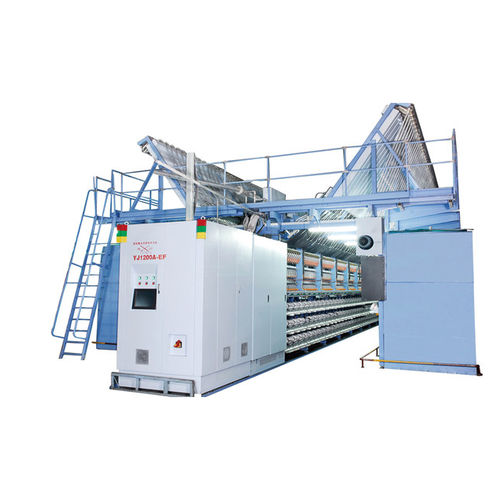

Texturing machine YJ-1200A-EF

YJ-1200A-EF HIGH SPEED DRAW TEXTURING MACHINE FOR PA WITH ELASTAN DEVICE Technical data Spindle number 240/264/288 Section number 10/11/12 Pitch 1440 Spindles per section 24 Spindle gauge 110 W2 Max. Mechanical Speed 1200 Arrange of fiber 30-210 L X WX H 18780X7850X5245 Texturing twist model Disc Disc dimension φ49.6X6/φ45X6 Max. Speed of friction unit 18000 W1/W2.1/W2.2/W3 Roller φ75 Elastan feed roller φ25 Take-up roller φ100 Oiling roller φ30 Up heater length 2000 Model of Up heater 联苯 Biphenyl Cooling rail length 1100 Size of Take-up φ250x250 Size of feed package φ435x250 Whole power 184 Effective power 82 Use: This machine is used to make the nylon fiber to be low and middle stretch fiber, and make the spandex and nylon covering together, if equipped with intermingle nozzle, this machine can make intermingle fiber also. Feature: 1.Two sides of this machine are relatively independent. The technology can be set separately. Different types and denier texturing yarn can be processed at the same time. 2.Two W2 roller structure, improve the yarn quality of nylon and spandex covering 3. Three way oiling, adopts stainless steel oil roller.
