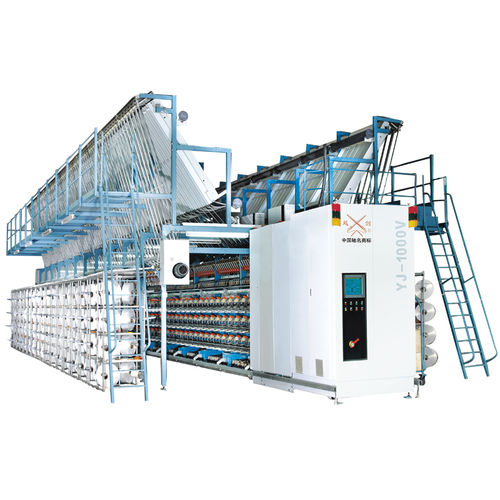

Texturing machine YJ-1000DS

Name: - YJ-1000DS Model 240/264 Double Din high-speed computer textured Description: purposes: The machine is a two-spindle high-speed computer texturing machine, is a new, high-speed, high filament processing equipment, mainly for the polyester pre-oriented yarn ( POY ) ; by heat deformation of the low elastic properties of the stretch textured yarn ( DTY ), processing will be ' S 'twist and' Z 'twisted double wire folded into a wire without residual torque.; Main parameters : spindles : 240 , 264 tablets the highest mechanical Speed: 1000M / MIN (W2 roller speed ) false twister: stacked disc 8 type false twister the first hot box: Union Gas stupid heating ( length: 2.0 m ) s two hot box: Contact stupid gas heating ( length: 1.46 m ) cooling track length: 1100MM friction roller diameter: Φ 100MM Roller diameter: 75 MM oil roller diameter: 75 MM ingots from : 110MM Pitch: 1440MM Processing Denier range: 55 250 Dtex Roll Size: Φ250 X 250MM Dimensions: 18780 X 10540 X 5250 MM machine power . Installed power: 238KW ;. effective power: 108KW
