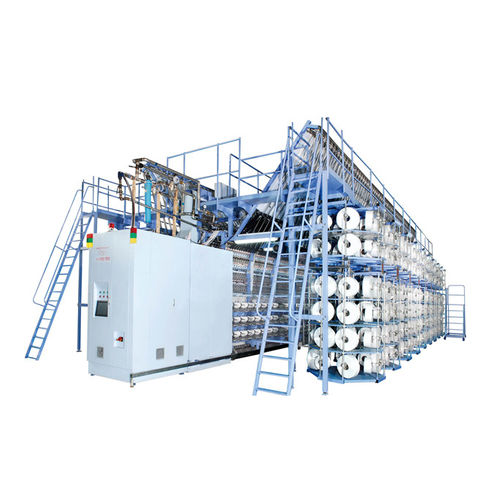

MODEL YJ1000V-DSM-240/264/288 HIGH SPEED DRAW-DOUBING MOTOR SPINDLE TEXTURING MACHINE
Main Datas
Spindle number - 240spindles(standard),264/288spindles
Max. mechanical speed - 1000m/min(W2 feed roll speed)
Twister - disc friction of individually driven unit
First heater - Diphenyl/2000mm
Second heater - Diphenyl/1460mm
Cooling rail length - 1100mm
Diameter of take-up roll - Φ100mm
Diameter of feed roll - Φ75mm
Diameter of oiling roll - Φ 75mm
Distance of both spindles - 110mm
Pitch - 1440mm
Denier of fiber - 55-250dtex
Package of take-up - Φ 250X250mm
Overall size - 18780*10540*5740(Rotary creel)
Whole power - 238Kw
Effective power - 108Kw
Use
This machine is used double twister high speed draw-texturing machine, it is new, high speed, high efficient long yarn
processing equipment. It mainly used to make the polyester fiber (POY) through heating, transhape low and middle stretch
fiber (DTY) through twister, make 'S' and 'Z'. In the condition of same speed, the output of this machine is doubled compare
with the single twister.
Feature
1.It can plying the twist S and Z twist.
2.Controlled by single spindle driving device, so no need of timing belt driving twister. Twister spindle group allowed
higher twist speed, the max. can be 20000rpm. Because of remove the slipping phenomenon between timing belt and twister
spindle group, makes the less shocking and higher speed accuracy speed.
3.The deforming heater adopts double thread route biphenyl air heating, the setting heater adopts no touch biphenyl
air heating, the computer controls the heating and temperature control.
