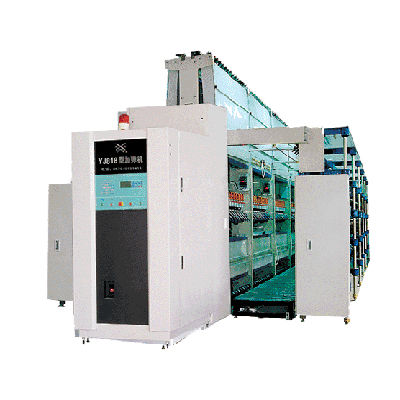

Texturing machine YJ818

Product Description: Using： The machine can wash wheels, polypropylene and other untwisted strands, through the false-twist texturing process into a shot, low elastic properties of the stretch yarn machine Features： 1, computer circuit temperature monitoring system, temperature control and high precision 2, using precision winding forming device, with the multi-function drive imports, and fully achieve the anti-fold, anti-convex and other functions, to ensure a good roll Forming and unwinding. Main technical parameters: Models YJ818 Scope 50200D Stacked disc friction false-twist-type way False twist direction S or Z direction Wire-speed 250470Infinitely adjustable Standard roll weight 4.5Kg Roll Size Φ250×250(mm) Inverter variable speed ratio adjustment means drawing hot box thermal insulation on the power of 35Kw height of 1200mm box number two roller Road Roller (Road Roller Option III) pitch 1640mm the whole machine spindles 120,144,168 spindles the number of spindles per section 24 spindles motor power 17KW dimensions 10324 × 5400 × 3800（120 spindles）
