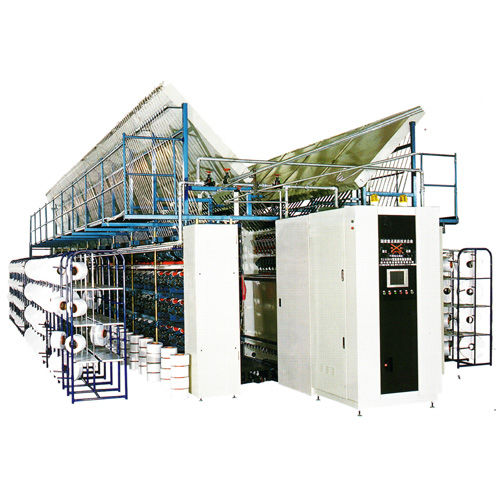

Texturing machine YJ800V

Main Datas - Spindle number - 144.168.192.216.240spindles Pitch - 1640mm speed - 600m/min Max.technology speed - 450～550m/min Arrange of fiber - 22～330dtex Twister - Laminated friction disc Cooling track length - 700mm First heater - Biphenyl air heating(length is l.6m) Second heater - Biphenyl air heating(length is l.2m) Size of take - up - double tapers bobbin, taper degree 75°or straight side Standard weight of take -up - 4.5 - 5kg Whole power - 26.7KW Overall size - (L x W x H) 15040 x 6920 x 4160 (168spindles) Use: This machine is used to make the polyester fiber and polypropylene fiber to be low and high stretch fiber through twisters. Feature: 1.The first heater ( deforming heater) and the second heater ( setting heater) adopt biphenyl air heating.The arrange of temperature control is 155 - 244 . 2.The transmission adopts synchronous teeth type belt drive. The structure is simple and the noise is low.Every roller, take - up and twister system adopt AC asynchronous motor and converter speed - adjust control technology. The machine s transmission adopts tachometer feedback system to realize closed-loop pulling. 3.Adopts importing plane belt and Danfoss converters. The bearings at the key parts are imported that improves the machine s feature. 4.The advanced designed electrical control system makes the operation simple, running reliable. Man - machine interaction can be realized by touching screen. 5.Adopts the special structure yarn - lead forming part and precise electric control. That realizes the precise take - up, effectively prevent overlapping. Assure the bobbin forming good and the withdraw rolling smoothly.
