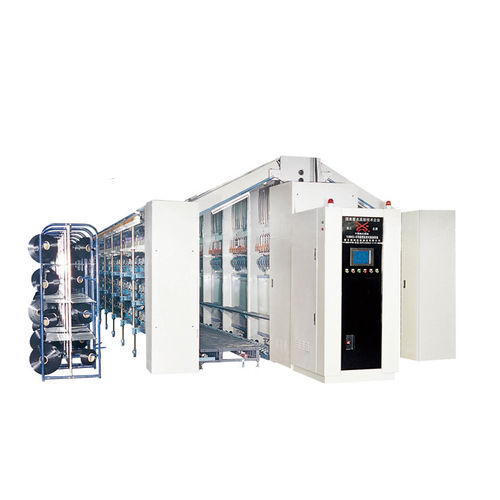

Texturing machine YJ800D/DE

texturing machine
texturing machine
Add to favorites
Compare this product


Description

Main Datas Spindle number - 240锭(基本型)24锭/节 Max. mechanical speed - 720m/min(II roller line speed) Twister - Laminated friction disc First heater - Biphenyl air heating(length is l.8m) Cooling track length - 780mm Diameter of friction roller - Φ90mm Pitch - 1520mm Distance of two spindles - 110mm Arrange of fiber - 22 - 111 dtex 30D - 70D 1.5 - 3.5 times Max. size of original fiber - Φ435 * 120mm Standard weight of take -up - 4.5KG Size of take - up - Φ250*240mm(double tapers bobbin, taper degree 75 or straight side) Overall size - 14805 * 7640*3090 mm power Whole power - 131KW Effective power - 52KW 1. YJ800DB is based on our market in recent years, the reference and the most advanced technology and with the combination of our actual conditions to develop the advanced speed up the silk, the machine can spinning a regular, the jade lun ,more can be spun silk system, and the dacron a package by air to answer up to make the yarn. the machine the machine with a more functionaI.The machine for a saving of costs and save is an area of the current market original new product. 2. YJ800DB a hot oven for the air is heated by benzene concentration garwin computer control and control, control of a precision ±1℃, ensure that each ingot of consistency, temperature of the uniformity of dye to further improve dty of the color of the performance. 3. YJ800DB on a relatively independent, spun silk process can be set separately. you can satisfy users a machine can be spun the two specifications of products.
