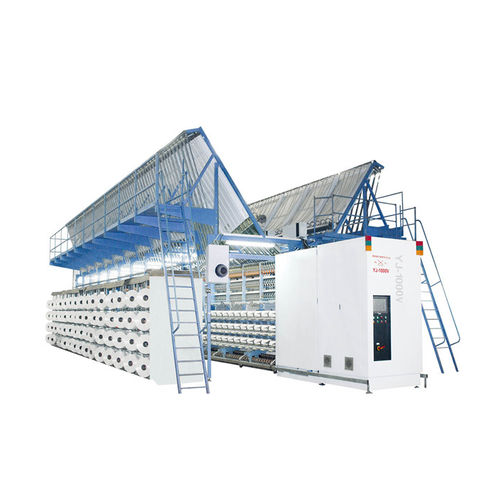

Texturing machine YJ1000VDS

Main Datas Spindle number - 240spindles(standard),264/288spind Ves Max. mechanical speed - 1000m/min(W2 feed roll speed) Twister - Type 8 disc friction unit First heater - Diphenyl/2000mm Second heater - Diphenyl/1460mm Cooling rail length - 1100mm Diameter of take-up roll - Φ100mm Diameter of feed roll - Φ75mm Diameter of oiling roll - Φ75mm Distance of both spindles - 110mm Pitch - 1440mm Denier of fiber - 55-250dtex Package of take-up - Φ250X250mm Overall size - 18780X10540X5250(Rotary creel) Whole power - 238Kw Effective power - 108Kw Model YJ-1000V High Speed Draw-texturing Machine is modern, high speed.High efficiency long silk processingequipment, it mainly process fiber (POY) by Heating and twisting, Then make it have low faxibility fiber (DTY).lt can plying thetwist and Z twist. 1. It can plying the twist and Z twist. 2. The deforming heater adopts double thread route biphenyl air heating, The setting heater adopt no touch biphenyl airheating, The computer controls the heating and temperature control. The precision of temperature control is±1℃, assureevery spindle's temperature to be same. This is beneficial for even dying. 3. The machine has the features of simple structure, reliable transmission ratio, low noise level and easy technological adjustment. 4. The advanced designed electrical control system makes the operation simple, running reliable, Man-machine interaction can be realized by touching screen.
