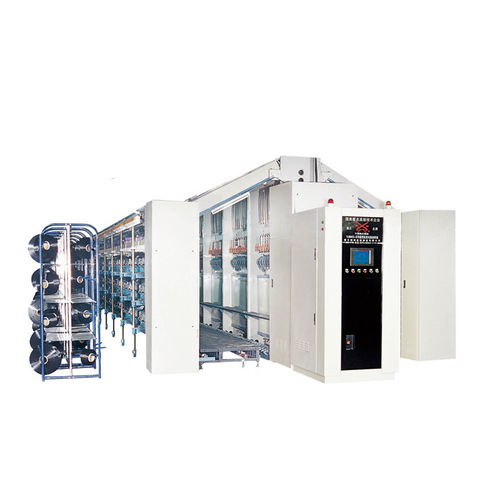

Texturing machine Y800DMLB

MODEL Y800DMLB-240/264/288 HIGH SPEED ELECTRON-CONTROLLED DRAW-TEXTURING MACHINEAND COVERING Main Datas - Spindle number - 144、168、192、216、240spindles Max. mechanical speed - 600m/min(II roller line speed) Twister - Laminated friction disc First heater - Biphenyl air heating(length is l.4m or 1.6m) Cooling rail length - 610mm Diameter of take-up roll - Φ90mm Pitch - 1520mm Distance of both spindles - 110mm Denier of fiber - 22~111dtex Denier of spandex - 30D~70D Max. size of original fiber - Φ435 X 120mm Standard weight of take -up - 4.5KG Package of take - up - Φ250 * 240mm(double tapers bobbin, taper degree 75 0r straight side) Overall size - 11525 * 6920 * 3090(mm) power Whole power - 49.5KW Effective power - 29.5KW Feature: 1. YJ800MLB is the model we developed according to the marking characteristic, referred to the domestic and foreign most advanced high speed covered texturing machine and our factory's actual situation. This machine can not only making polyester fiber and polypropylene, but also can make polyester fiber and polypropylene air covered to be covered elastic yarn. This is the one machine have several functions. This model saves cost and area for the customer and it is the unique model in the market now
