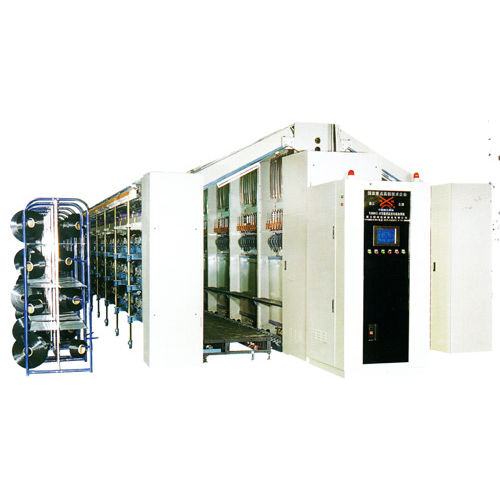

Texturing machine YJ800D

Main Datas - Spindle number - 144、168、192、 216、 240spindles Max. mechanical speed - 600m/min(II roller line speed) Twister - Laminated friction disc First heater(deforming heater) - Biphenyl air heating(length is l.6m) Second heater(setting heater) - Biphenyl air heating( length is 0,9m or 1m)( Can choose electricty heating) Cooling track length - 610mm Diameter of friction roller - Φ90mm Pitch - 1520mm Distance of two spindles - 110mm Arrange of fiber - 22 - 330 dtex Max. size of original fiber - Φ435 * 120mm Standard weight of take -up - 4.5kg Size of take - up - Φ250 * 250mm(double tapers bobbin, taper degree 75 0r straight side) Overall size - 14100*6920*3100 mm(168spindles) power Whole power - 49.5KW Effective power - 29.5KW Use: This machine is used to make the polypropylene fiber to be low, middle and high stretch fiber through twister. if equipped with intermingle nozzle, this machine can make intermingle fiber. Feature: 1.Model YJ800DS texturing machine is our company rests on the market the characteristic, has referred to the domestic and foreign most advanced texturing technology and made by ourselves, this machine can not only make the polyester low stretch, can also make the polyester fiber and polyamide middle stretch and other not hot moment yarn, the mainly point is optimized the silk path, maximum limit reduced the yarn in the producing process winding and the friction,reduced the damage between silk path to the silk, maximum limit reduced the heroin powder and the broken yarn production, thus satisfied the user to produce the thin and porous silk request.
