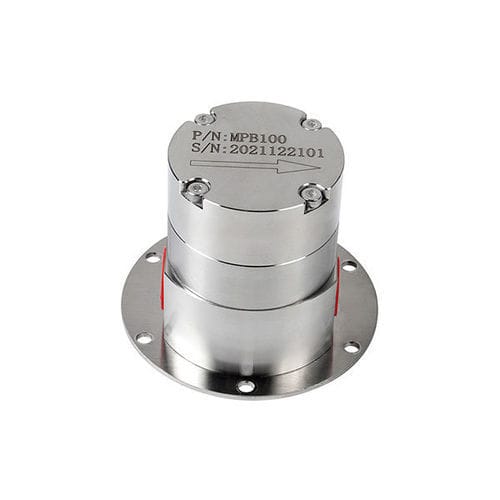

Helical gear pump MPB100

waterfor chemicalsacid

Overview
The MPB series micro magnetic gear pump uses a magnetic drive to create a fully sealed pump chamber, ensuring leak-free fluid transfer with minimal pulsation and low noise. Available across a wide range of displacements, the MPB100 delivers 3.60 ml/rev with a maximum flow of 10 L/min. Materials and seal options make the series suitable for high-purity and corrosive media.

Features

• Accurate, pulse-free delivery
  Helical gear design provides continuous, metered flow; with servo or stepper drive, delivery accuracy can reach ±0.5%.
• Strong suction and stable pressure
  Capable of high and consistent conveyance pressure; effective for low-viscosity, high-pressure dosing.
• Zero external leakage
  Magnetic coupling combined with a static O-ring (FKM or PTFE) isolates the pumped medium from the atmosphere.
• Low noise operation
  Torque transmitted via magnetic coupling avoids mechanical contact; helical gears reduce friction and vibration.
• Long service life
  Precision manufacturing and high-performance materials extend operational durability.

Series description
MPB micro magnetic gear pumps are designed for precise flow control and contamination-sensitive applications. Gears use high-performance PEEK engineering plastic; housings and shafts are available in 316L stainless steel or 304 stainless steel, with PPS as an alternative body material. Seal options: FKM for wear and temperature resistance, PTFE for superior chemical resistance. Magnetic internal/external coupling ensures leak-free power transmission.

Typical applications
Suitable for deionized water, methanol, urea solution, kerosene, additives, lubricants, alkaline/acid solutions, ammonia solution, cobalt solutions, dialysate, ethylene glycol, refrigerants, inks, glycerin, phenolic resins, curing agents, fragrances, and fluorinated liquids.

Model specification
Model | MPB | 100 | B | A | C
Position | 1 | 2 | 3 | 4 | 5
1 - Pump series: MPB (static O-ring seal)
2 - Model/displacement: 100 = 3.60 ml/rev; max flow 10 L/min
3 - Pump body: A = 304; B = 316L; C = PPS (other options available)
4 - Gear/shaft: A = PEEK gear + 316L shaft; B = PEEK gear + ceramic shaft (custom options available)
5 - Inlet/outlet thread: A = G1/8; B = G1/4; C = G3/8; D = G1/2; E = custom

Technical parameters
Model - Displacement (ml/rev) - Flow (L/min)
MPB003 - 0.1 ml/rev - 0.3 L/min
MPB010 - 0.28 ml/rev - 1.0 L/min
MPB015 - 0.35 ml/rev - 1.5 L/min
MPB030 - 0.9 ml/rev - 3.0 L/min
MPB060 - 1.41 ml/rev - 6.0 L/min
MPB075 - 1.7 ml/rev - 6.0 L/min
MPB100 - 3.6 ml/rev - 10 L/min
MPB150 - 5.4 ml/rev - 15 L/min
MPB200 - 6.6 ml/rev - 20 L/min
MPB350 - 12 ml/rev - 35 L/min
MPB600 - 15 ml/rev - 45 L/min
MPB1000 - 33 ml/rev - 100 L/min

Common parameters:
Viscosity range: MPB003–MPB350: 0–3000 cP; MPB600 & MPB1000: 0–12000 cP
Temperature range: -40°C to 100°C
Pressure differential: MPB003–MPB350: 0–20 bar; MPB600 & MPB1000: 0–5 bar
Recommended inlet filter: 400 mesh
Inlet vacuum level: -0.85 bar
Noise: smaller models (high speed) 4000 RPM < 60 dB; larger models 2000 RPM < 60 dB

Exploded view / components

• Inner-hexagon screw
• Front end cover
• Sealing rings
• Dowels
• Driving gear
• Driven gear
• Pump chamber
• Shaft sleeves
• Main body
• Internal magnetic steel
• Shielding case
• Mounting plate and fasteners

Technical specifications

• Model: MPB100
• Displacement: 3.60 ml/rev
• Maximum flow: 10 L/min
• Pump body materials: 304 (A), 316L (B), PPS (C)
• Gear/shaft options: PEEK gear + 316L shaft (A); PEEK gear + ceramic shaft (B); custom options
• Sealing: static O-ring (FKM or PTFE)
• Inlet/outlet threads: G1/8, G1/4, G3/8, G1/2, others
• Viscosity range: up to 3000 cP (most models); up to 12000 cP (MPB600/MPB1000)
• Temperature range: -40°C to 100°C
• Pressure capability: up to 20 bar (smaller models); up to 5 bar (highest-flow models)
• Recommended inlet filter: 400 mesh
• Inlet vacuum level: -0.85 bar
• Operation: Magnetic-coupled, fully sealed chamber — no mechanical shaft seal contact, preventing leakage and contamination
