Gear pump MPB030

for chemicalsmagnetic-drivestationary

Overview

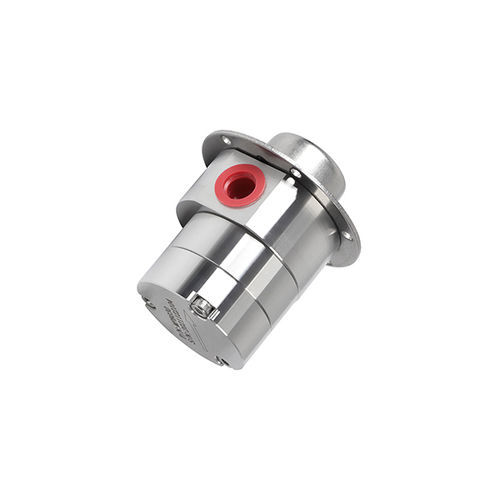

The MPB030 micro magnetic-drive gear pump features a fully sealed pumping chamber using magnetic coupling. It delivers virtually pulse-free, leak-free fluid transfer with low noise and compact dimensions. Designed for applications requiring approximately 1.5–3 L/min flow and differential pressures in the 0.5–18 bar range.

Key features

• Pulse-free accurate delivery
  Helical gear design provides continuous, precise fluid transport; with servo or stepper drives, delivery accuracy can reach ±0.5%.
• Strong suction and stable pressure
  Capable of high and stable conveyance pressure and effective delivery of low-viscosity liquids.
• Leak-free operation
  Magnetic drive with static O-ring sealing isolates the pumped medium from the exterior to prevent leakage.
• Low noise transmission
  Torque is transmitted via magnetic coupling and helical gears for smooth meshing, reducing friction, impact and vibration.
• Extended service life
  Precision manufacturing and suitable material selection extend operational longevity.

Materials & Applications
MPB030 pumps use PEEK gears with housings and shaft options in 316L stainless steel, 304, PPS or other custom materials. Seals: static O-ring in FKM or PTFE (FKM for improved wear and temperature resistance; PTFE for enhanced chemical resistance). Power is transmitted by internal/external magnetic coupling for leak-free transfer. Typical applications: precision micro-transfer, dosing, lubrication, spraying, dispensing, sampling, coding, boosting, circulation, coating, painting and metering systems.

Model specification (table)
Model | MPB | 030 | B | A | B
Position | 1 | 2 | 3 | 4 | 5
1 - Pump Series: MPB: Rubber O-Ring Seal
2 - Model/Displacement: 030: 0.90 ml/rev; Maximum flow rate is 3 LPM
3 - Pump Body: A: 304; B: 316L; C: PPS; Other options available
4 - Gear/Shaft: A: Gear PEEK + shaft 316L; B: Gear PEEK + shaft ceramic; Other options available
5 - Inlet/Outlet Thread: A: G1/8; B: G1/4; C: G3/8; D: G1/2; E: Custom options

Technical Parameters (table)
Header: Model | Displacement (ml/rev) | Flow (L/min) | Viscosity Range (cps) | Temperature Range | Pressure Difference | Inlet Filter | Inlet Vacuum Level | Noise
MPB003 | 0.1 ml/rev | 0.3 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB010 | 0.28 ml/rev | 1.0 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB015 | 0.35 ml/rev | 1.5 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB030 | 0.90 ml/rev | 3.0 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB060 | 1.41 ml/rev | 6.0 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB075 | 1.7 ml/rev | 6.0 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB100 | 3.6 ml/rev | 10 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB150 | 5.4 ml/rev | 15 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB200 | 6.6 ml/rev | 20 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB350 | 12 ml/rev | 35 L/min | 0-3000 cps | -40°C ~ 100°C | 0-20 Bar | Recommended 400 mesh | -0.85 bar | 4000RPM < 60 dB
MPB600 | 15 ml/rev | 45 L/min | 0-12000 cps | -40°C ~ 100°C | 0-5 Bar | Recommended 400 mesh | -0.85 bar | 2000RPM < 60 dB
MPB1000 | 33 ml/rev | 100 L/min | 0-12000 cps | -40°C ~ 100°C | 0-5 Bar | Recommended 400 mesh | -0.85 bar | 2000RPM < 60 dB

Exploded view parts (excerpt)
1 - Inner-hexagon screw *3
2 - Front end cover
3 - Sealing ring 1
4 - Dowel *2
5 - Driving gear
6 - Driven gear
7 - Pump chamber
8 - Shaft sleeve *6
9 - Main body
10 - Sealing ring 2
11 - Internal magnetic steel
12 - Shielding case
13 - Mounting plate
14 - Countersunk head screw M3*6

Characteristics / technical specifications

• Commercial model: MPB030
• Displacement: 0.90 ml/rev
• Maximum flow rate: up to 3.0 L/min
• Applicable differential pressure range: up to 0–20 bar (typical for MPB030)
• Viscosity range: 0–3000 cps
• Temperature range: -40°C to 100°C
• Noise: < 60 dB at rated RPM (4000 RPM for MPB030 group)
• Inlet filter: Recommended 400 mesh
• Inlet vacuum level: -0.85 bar
• Pump body materials: 304 / 316L / PPS / custom
• Gear & shaft options: PEEK gears with 316L shaft or ceramic shaft (custom options available)
• Sealing materials: static O-ring FKM or PTFE
• Inlet/outlet thread options: G1/8, G1/4, G3/8, G1/2 or custom
• Drive: Magnetic coupling (internal/external) enabling fully sealed, leak-free operation
