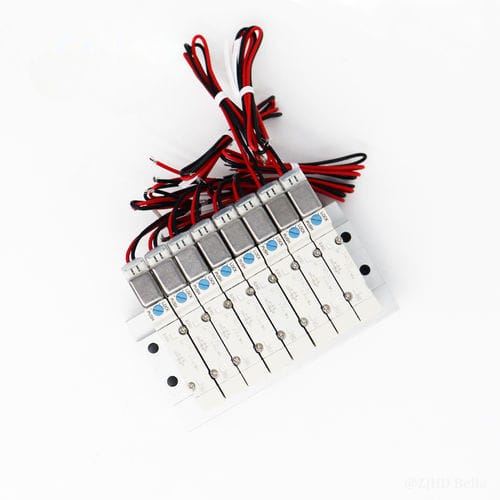

Pilot-operated solenoid valve block SY3000

5-wayfor compressed aircompact

Product overview
Compact base-mounted manifold for SY3000 series 5-port solenoid valves. Model SS5Y3-41-08-M5-5G provides 8 stations on a single base to mount and distribute pneumatic signals for multiple 5-port valves. Suitable for centralized valve assembly and modular pneumatic control systems.

Key features

• 8-station base-mounted manifold for SY3000 5-port valves (SS5Y3-41-08-M5-5G)
• Supports combined mounting of 3-port and 5-port valves
• Low power consumption: 0.1 W (with power-saving circuit)
• Multiple manifold configurations: aluminum body, DIN-rail, stacking type
• Available manifold series: SS5Y3, SS5Y5, SS5Y7, SS5Y9

Technical data

• Series: SY3000
• Model: SS5Y3-41-08-M5-5G (8-station, 5-port base-mounted manifold)
• Manifold series options: SS5Y3, SS5Y5, SS5Y7, SS5Y9
• Stations: 8
• A/B port size: M5 x 0.8
• Rated voltage: 24 VDC
• Power consumption: 0.1 W (with power-saving circuit)
• Type of actuation: 2-position single
• Pilot type: Internal pilot
• Coil specifications: Standard
• Electrical entry: Grommet lead wire, length 300 mm
• Manual override: Push-turn locking type
• Thread type: PT
• Manifold mounting options: aluminum body, DIN rail, stacking type

Applications & ordering

• Intended for factory automation, pneumatic control panels and assembly-line equipment
• Order model SS5Y3-41-08-M5-5G for an 8-station 5-port base-mounted manifold; verify compatibility with SY3000 valve modules
• Specify desired manifold option (aluminum, DIN-rail or stacking) and electrical entry when ordering
