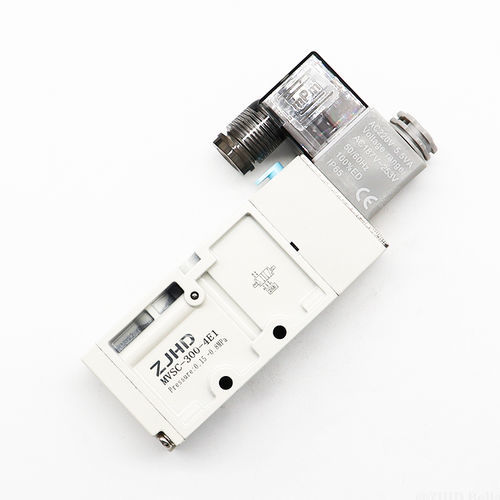

Pilot-operated solenoid valve MVSC-300-4E1-A5-wayairfor compressed air
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 5-way
- Medium
- air, for compressed air
- Body
- manifold
- Process connection
- R 1/4
- Other characteristics
- electromagnetic, DIN
- DN
6.35 mm
(0.25 in)- Voltage
220 V
Description
Short description
Technical description
Model: MVSC-300
Valve type: 4E1 — single solenoid 5/2-way
Port size: 1/4 (PT)
Voltage: AC220V
Electrical entry: DIN terminal
Pilot-oriented mode: Internal pilot
Thread type: PT
Specifications
- ZJHD MVSC-300-4E1-A solenoid valve, 5/2-way
- Pilot-operated: internal pilot
- No lubrication required
- Available in several standard voltage options
- Can form an integrated valve group with a base to save installation space
- Internal bore processed with special technology for low friction, low starting pressure and long service life
Technical description
Model: MVSC-300
Valve type: 4E1 — single solenoid 5/2-way
Port size: 1/4 (PT)
Voltage: AC220V
Electrical entry: DIN terminal
Pilot-oriented mode: Internal pilot
Thread type: PT
Specifications
- Model: MVSC-300
- SKU / Product code: MVSC-300-4E1-A
- Valve type: 4E1 (5/2-way)
- Port size: 1/4 (PT)
- Voltage: AC220V
- Electrical entry: DIN terminal
- Pilot-oriented mode: Internal pilot
- Lubrication: no oil required
- Mounting: manifold/integrated valve group with base available to save installation space
- Internal bore: special processing for low friction, low starting pressure and extended service life
