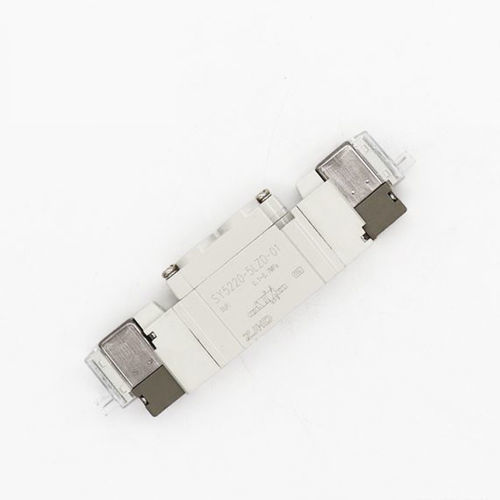

5-way solenoid valve SY5220-5LZD-015airfor compressed airaluminium
Add to favorites
Compare this product
Characteristics
- Ports/positions
- 5-way
- Medium
- air, for compressed air
- Body
- aluminium
- DN
Max.: 10,000 mm
(393.701 in)Min.: 0 mm
(0 in)- Voltage
24 V
Description
Short description
Description for ZJHD SY5220-5LZD-01
Technical specifications
Applications and installation
- ZJHD SY5220-5LZD-01 ported solenoid valve, single unit
- Combined mounting of 3-port and 5-port valves supported
- Power consumption: 0.1 W (with power-saving circuit)
- Available manifold options: aluminum-body manifold, DIN rail, stacking-type manifold
- Electrical entry: L-type plug connector with 300 mm lead; light/surge voltage suppressor; push-turn locking manual override
Description for ZJHD SY5220-5LZD-01
- Series — 5 — SY5000
- Type of actuation — 2 — Double solenoid, 5/2 way
- Coil specifications — – — Standard
- Rated voltage — 5 — 24 VDC
- Electrical entry — L — L-type plug connector with lead wire (length 300 mm)
- Light/Surge voltage suppressor — Z — With light/surge voltage suppressor
- Manual override — D — Push-turn locking slotted type
- A/B port size — 1 — 1/8
- Thread type — – — PT
- Bracket — – — None
Technical specifications
- SKU: SY5220-5LZD-01
- Series: SY5000
- Actuation: Double solenoid, 5/2 way
- Coil: Standard, rated 24 VDC
- Electrical entry: L-type plug connector with 300 mm lead wire
- Suppression: Integrated light/surge voltage suppressor
- Manual override: Push-turn locking slotted type
- Ports: A/B 1/8, Thread: PT
- Bracket: None
- Power consumption: 0.1 W (with power-saving circuit)
- Manifold/installation: Aluminum-body manifold, DIN rail, stacking type; supports combined 3-port/5-port mounting
Applications and installation
- Industrial pneumatic control and automation systems
- Modular manifolds for compact valve islands
- DIN-rail mounting for control cabinets
- Stacking installations and mixed 3-port/5-port assemblies
- Ordering reference: use SKU SY5220-5LZD-01 and specify required manifold and bracket options
