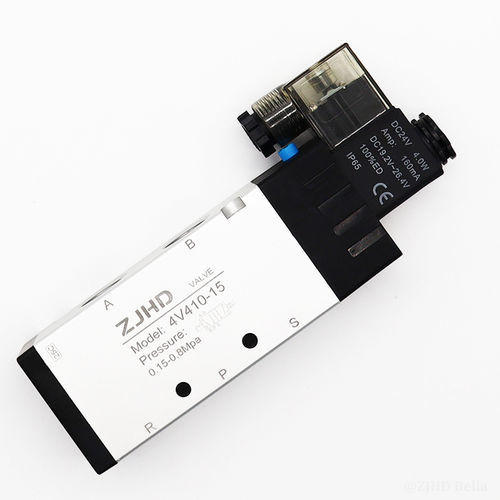

Pilot-operated solenoid valve 4V410-15B

5-wayfor compressed airmanifold

Product overview

• ZJHD 4V410-15B solenoid valve
• Pilot-oriented mode: internal pilot
• No need to add oil for lubrication
• Several standard voltage grades are optional
• Can form integrated valve groups on a manifold to save installation space
• Internal bore processed with special technology: low friction, low starting pressure and long service life

Technical details (table)
Field description | Field value | Value description
Model | 4V | Solenoid valve (5/2 way)
Code | 4 | 400 Series
Valve type | 10 | Single solenoid 5/2 way
Port size | 15 | 1/2
Voltage | B | DC24V
Thread type | – | PT
Pilot-oriented mode | – | Internal pilot

Features / technical specifications

• Model: 4V (Solenoid valve 5/2 way)
• Series: 400 Series
• Valve type: Single solenoid 5/2 way
• Port size: 15 (1/2)
• Voltage code: B (DC24V)
• Thread type: PT
• Pilot-oriented mode: Internal pilot
• No lubrication required
• Designed for integrated valve grouping to save installation space
• Internal bore special processing: low friction, low start pressure, long service life
