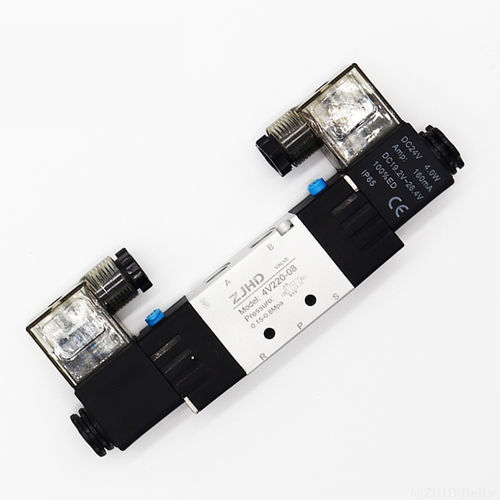

Pilot-operated solenoid valve 4V220-08B

5-wayairfor compressed air

Description
The ZJHD 4V220-08B is a double solenoid 5/2-way solenoid valve (DC24V) with internal pilot, designed for pneumatic control applications in industrial systems. The valve's internal bore is manufactured with a special processing technique to reduce friction and starting pressure, improving operational life. Multiple standard voltage options are available. No lubrication oil is required. The valve can be mounted on a base to form an integrated valve group and save installation space.

Features

• Double solenoid 5/2-way valve, model 4V220-08B
• Internal pilot operation
• Special internal bore processing: low friction, low starting pressure, extended service life
• No oil lubrication required
• Available in several standard voltage grades (including DC24V)
• Can form integrated valve group with base to save installation space

Technical table
Model — 4V — Solenoid valve (5/2-way)
Code — 2 — 200 Series
Valve type — 20 — Double solenoid 5/2-way
Port size — 08 — 1/4 PT
Voltage — B — DC24V
Electrical entry — – — Terminal
Thread type — – — PT
Pilot-oriented mode — – — Internal pilot

Specifications

• SKU: 4V220-08B
• Brand: ZJHD
• Model: 4V
• Series: 200 Series
• Valve type: Double solenoid 5/2-way
• Port size: 08 (1/4 PT)
• Voltage code: B (DC24V)
• Electrical entry: Terminal
• Thread type: PT
• Pilot-oriented mode: Internal pilot
• Key attributes: No lubrication oil required; special internal bore processing for low friction and long service life; can form integrated valve group with base
• Category: Solenoid Valve
