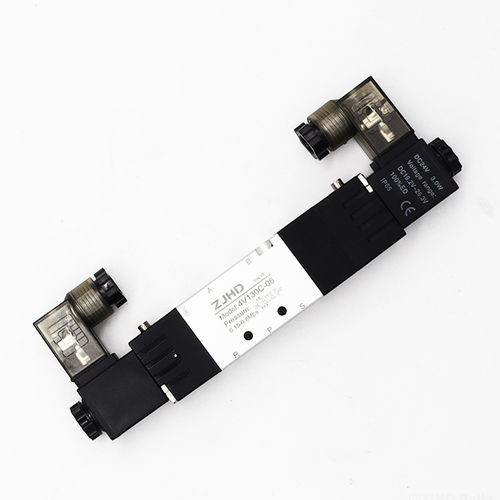

Pilot-operated solenoid valve 4V130C-06B

5-wayfor compressed airelectromagnetic

Description

Overview

• ZJHD 4V130C-06B solenoid valve
• Pilot-oriented mode: Internal pilot
• No need for additional lubrication
• Multiple standard voltage options available

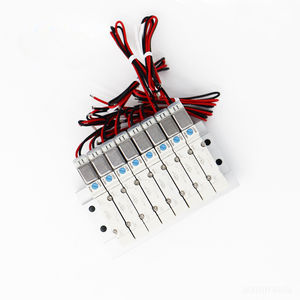

• Can form integrated valve group with base to save installation space
• Internal passage processed with special technology for low friction, low starting pressure and long service life

Technical table
Field description | Field value | Value description
Model | 4V | Solenoid valve (5/3 way)
Code | 1 | 100 Series
Valve type | 30C | Double solenoid 5/3 way closed center
Port size | 06 | 1/8
Voltage | B | DC24V
Electrical entry | – | Terminal
Thread type | – | PT
Pilot-oriented mode | – | Internal pilot

Characteristics / technical specifications

• SKU: 4V130C-06B
• Brand: ZJHD
• Series: 100 Series
• Model series/name: 4V
• Valve type: Double solenoid 5/3 way, closed center
• Port size: 1/8 (06)
• Voltage: DC24V
• Electrical entry: Terminal
• Thread type: PT
• Pilot mode: Internal pilot
• Lubrication: Not required
• Feature: Special internal passage processing — low friction, low start pressure, long service life
• Installation: Can form integrated valve group with base to save installation space
