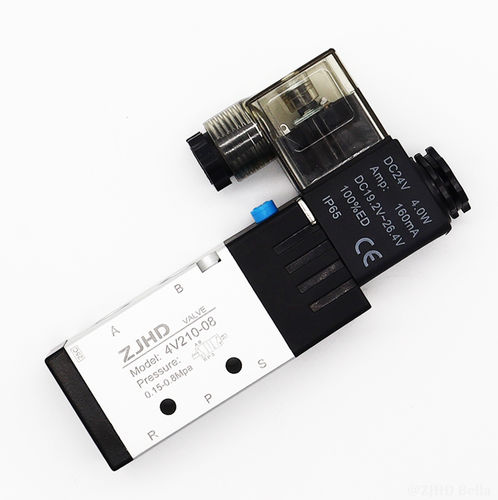

Pilot-operated pneumatic directional control valve 4V210-08B

solenoid-operated5/2-way1/4"

Product overview

• ZJHD 4V210-08B Solenoid Valve
• Pilot-oriented mode: Internal pilot
• No need to add oil for lubrication
• Several standard voltage grades are optional
• Can form integrated valve group with base to save installation space
• Internal hole adopts special processing technology with low attrition friction, low start pressure and long service life.

Technical description (table)
Field description | Field value | Value description
Model | 4V | Solenoid valve (5/2 way)
Code | 2 | 200 Series
Valve type | 10 | Single solenoid 5/2 way
Port size | 08 | 1/4
Voltage | B | DC24V
Electrical entry | – | Terminal
Thread type | – | PT
Pilot-oriented mode | – | Internal pilot


Technical specifications

• Model: 4V
• Series: 200 Series
• Valve type: Single solenoid 5/2 way
• Port size: 1/4 (08)
• Voltage option: DC24V (code B)
• Electrical entry: Terminal
• Thread type: PT
• Pilot-oriented mode: Internal pilot
• No lubrication required
• Can form integrated valve group with base to save installation space
• Internal hole special processing: low attrition friction, low start pressure, long service life
