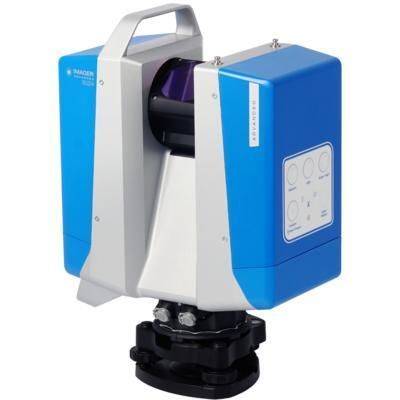

3D scanner Z+F IMAGER® 5024 Advanced

for mappinglaserpoint cloud

Overview
The Z+F IMAGER® 5024 Advanced is a 3D laser scanner designed for fast, efficient surveying tasks. It combines flexibility, stability and consistent data quality for close-range and mid-range operations up to 150 m.

Data quality
Despite an attractive entry-level price, the Z+F IMAGER® 5024 Advanced provides the same data quality across modes and resolution levels as the premium Z+F IMAGER® 5024 Supreme.

Upgrade option
The IMAGER® 5024 Advanced can be upgraded to the Z+F IMAGER® 5024 Supreme to unlock additional resolution levels, quality modes and extended range.

Speed and efficiency
Increased rotational speed and a high data rate (up to ~2.2 MPx/s) enable high-resolution scans in about 52 seconds. Scan time is reduced by approximately 50% versus the predecessor (IMAGER® 5016). Essential settings are available on a simplified display; full configuration is possible via a smartphone or tablet interface.

Further technical highlights

• Data rate: 2.2 MPx/s (max. 2.187 million pixel/sec)
• Scan time (high-resolution): 52 seconds
• Range: up to 150 m
• Resolution levels: 4
• Quality modes: 3
• Interface: control panel (configurable via smartphone/tablet)
• Storage: 256 GB

High-quality color data with the Z+F TopCam
The IMAGER® 5024 Advanced supports external color capture with the Z+F TopCam. This wide-angle camera delivers color information up to 12 times faster than the i-Cam, offering a quick alternative for color acquisition.

Flexibility with Z+F FlexScan® 22
The IMAGER® 5024 Advanced is fully compatible with Z+F FlexScan® 22 to build an efficient mobile surveying system. Mobile SLAM scan data can be combined with static scans to improve overall accuracy.

Applications

• Industry
• Forensics
• Architecture & BIM
• Facility management
• Insurance
• Archaeology
• Monuments / Heritage
• Virtual reality

blue workflow® – functions

• Z+F FlexScan compatible
• Z+F TopCam compatible
• On-site real-time registration
• Data and target verification
• Multi-scanner support
• IMU-optimized leveling

Note on deflection unit
Completely encapsulated rotating mirror with integrated HDR camera and LED spots; wide vertical and horizontal field of view and high angular resolution.

Characteristics / technical specifications

• Laser system: Laser class 1
• Beam diameter / divergence: ~3.5 mm @ 1 m / ~0.3 mrad (1/e2, half angle)
• Measurement range: 0.3 m ... 150 m (ambiguity interval)
• Range resolution: 0.1 mm
• Data acquisition rate: Max. 2.187 million pixel/sec (≈2.2 MPx/s)
• Scan time (high resolution): 52 seconds
• Linearity error: ≤ 1 mm + 10 ppm/m
• Range noise: 0.25 mm rms
• WLAN: 802.11 a/n/g dual band, up to 240 MBit/s
• Data storage: 256 GB
• Control: control panel; user interface configurable via smartphone/tablet
• Deflection unit: completely encapsulated rotating mirror with integrated HDR camera and LED spots
• Vertical field of view: 320°
• Horizontal field of view: 360°
• Angular resolution (vertical): 0.00026° (0.93 arcsec)
• Angular resolution (horizontal): 0.00018° (0.65 arcsec)
• Vertical accuracy: 0.004° (14.4 arcsec) rms
• Horizontal accuracy: 0.004° (14.4 arcsec) rms
• Rotation speed: max. 96 rps
